GrayLib::cXProtocolBase Class Reference

#include <cXProtocol.h>

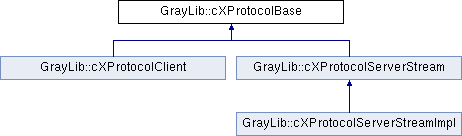

Inheritance diagram for GrayLib::cXProtocolBase:

Public Member Functions
	cXProtocolBase (cXProtocolDataMgr *pProtocolDataMgr)
virtual	~cXProtocolBase ()
cXProtocolDataMgr *	get_DataMgr () const
virtual bool	isClientSide () const =0
	STDMETHOD_ (cString, get_Name)() const =0
	STDMETHOD_ (PLEVEL_TYPE, get_PrivLevel)() const =0

Static Public Member Functions
static cStringA GRAYCALL	GetMsgName (XPROTO_t bMsg)

Public Attributes
cXProtocolDataMgr *const	m_pProtocolDataMgr
	Point back to the protocol singleton. More...
bool	m_bUseHashPropName
	for stuff i send, should i hash the prop names ? XPROTO_HashProp More...
cFile	m_FileWork
	The local file we are reading or writing for XPROTO_File. More...

Static Public Attributes
static const size_t	k_Packet_Size_Max = cStream::k_FILE_BLOCK_SIZE + 16

Detailed Description

State info for the connection (both RX and TX). Abstract Base for both cXProtocolClient or cXProtocolServer tracking a single connection.

Note

Authentication and encryption are outside the scope of this class. Use cSecureChannel.

Constructor & Destructor Documentation

cXProtocolBase()

GrayLib::cXProtocolBase::cXProtocolBase

(

cXProtocolDataMgr *

pProtocolDataMgr

)

~cXProtocolBase()

GrayLib::cXProtocolBase::~cXProtocolBase ( )

virtual

Member Function Documentation

get_DataMgr()

cXProtocolDataMgr* GrayLib::cXProtocolBase::get_DataMgr ( ) const

inline

GetMsgName()

cStringA GrayLib::cXProtocolBase::GetMsgName ( XPROTO_t  bMsg )

static

isClientSide()

virtual bool GrayLib::cXProtocolBase::isClientSide ( ) const

pure virtual

Implemented in GrayLib::cXProtocolServerStream, and GrayLib::cXProtocolClient.

STDMETHOD_() [1/2]

GrayLib::cXProtocolBase::STDMETHOD_ ( cString  , get_Name    ) const

pure virtual

Implemented in GrayLib::cXProtocolServerStream, and GrayLib::cXProtocolClient.

STDMETHOD_() [2/2]

GrayLib::cXProtocolBase::STDMETHOD_ ( PLEVEL_TYPE  , get_PrivLevel    ) const

pure virtual

Implemented in GrayLib::cXProtocolServerStream, and GrayLib::cXProtocolClient.

Member Data Documentation

k_Packet_Size_Max

const size_t GrayLib::cXProtocolBase::k_Packet_Size_Max = cStream::k_FILE_BLOCK_SIZE + 16

static

m_bUseHashPropName

bool GrayLib::cXProtocolBase::m_bUseHashPropName

for stuff i send, should i hash the prop names ? XPROTO_HashProp

m_FileWork

cFile GrayLib::cXProtocolBase::m_FileWork

The local file we are reading or writing for XPROTO_File.

m_pProtocolDataMgr

cXProtocolDataMgr* const GrayLib::cXProtocolBase::m_pProtocolDataMgr

Point back to the protocol singleton.

---

The documentation for this class was generated from the following files:

• c:/Dennis/Source/Gray/GrayLib/include/XProtocol/cXProtocol.h
• c:/Dennis/Source/Gray/GrayLib/src/XProtocol/cXProtocol.cpp
