GrayLib::cVideoFSRateController Class Reference

#include <cVideoFS.h>

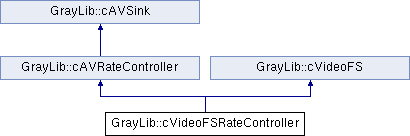

Inheritance diagram for GrayLib::cVideoFSRateController:

Classes
struct	CBlock

Public Member Functions
	cVideoFSRateController ()
virtual	~cVideoFSRateController ()
virtual HRESULT	OnHeaderStream (const cAVHeaderStream &head, const void *pForm, size_t nSizeForm) override
virtual HRESULT	OnFrame (const cAVHeaderFrame &head, const void *pData, size_t nSizeData) override
virtual HRESULT	BuildCompFrame (TIMESYS_t tWhenLast, const void *&rpCompRet, size_t &rnSizeRet) override
Public Member Functions inherited from GrayLib::cAVSink
virtual	~cAVSink ()
virtual HRESULT	OnHeaderOpen (const cAVHeader &head)
virtual HRESULT	OnHeaderClose ()
virtual HRESULT	OnClose ()

Protected Member Functions
void	UpdateBlockParams ()
Protected Member Functions inherited from GrayLib::cVideoFS
	cVideoFS (int nBlockX=k_BLOCK_DEF, int nBlockY=k_BLOCK_DEF)
	~cVideoFS ()
void	UpdateBlockParams ()
BYTE *	BuildCompFrameHeader (BYTE *pComp) const
bool	isReady () const noexcept
int	get_BlocksTotal () const noexcept
void	GetBlockRect (int col, int row, cRectI &rect) const noexcept
	UNITTEST_FRIEND (cVideoFS)

Protected Attributes
cArrayStruct< CBlock >	m_aBlocks
	the blocks making up the current frame. More...
cHeapBlock	m_CompFrame
	holder for the last compressed frame. key or diff. persisted for BuildCompFrame( rpCompRet ) More...

Additional Inherited Members
Public Attributes inherited from GrayLib::cVideoFS
cWinSize	m_BlockSize
	Preconfigured size of the dirty block in pixels. (arbitrary 16..256, multiple of 16) More...
cWinSize	m_FrameSize
	total size in pixels in Frame. More...
cWinSize	m_Blocks
	Count of blocks = m_FrameSize / m_BlockSize. More...
UINT	m_nFrameNum
	frame number in video stream so far. More...
cArrayVal< cColor888 >	m_BlockTmp
	space to hold a block for (de)compression. m_BlockSize More...
Static Public Attributes inherited from GrayLib::cVideoFS
static const int	k_BLOCK_DEF = 32
static const FOURCC	k_Form = ((DWORD)(BYTE)( 'F' ) | ((DWORD)(BYTE)( 'S' ) << 8) | ((DWORD)(BYTE)( 'V' ) << 16) | ((DWORD)(BYTE)( '1' ) << 24 ))

Detailed Description

take an incoming compressed stream and rate limit it. I must hold compressed blocks or at least the whole last good frame.

Constructor & Destructor Documentation

cVideoFSRateController()

GrayLib::cVideoFSRateController::cVideoFSRateController ( )

inline

~cVideoFSRateController()

virtual GrayLib::cVideoFSRateController::~cVideoFSRateController ( )

inlinevirtual

Member Function Documentation

BuildCompFrame()

HRESULT GrayLib::cVideoFSRateController::BuildCompFrame ( TIMESYS_t  tWhenLast, const void *&  rpCompRet, size_t &  rnSizeRet  )

overridevirtual

based on cAVRateController Build a (sort of) key frame from a certain point in time.

• tWhenLast = 0 = full key frame.

  Returns

  Number of blocks changed.

Implements GrayLib::cAVRateController.

OnFrame()

HRESULT GrayLib::cVideoFSRateController::OnFrame ( const cAVHeaderFrame &  head, const void *  pData, size_t  nSizeData  )

overridevirtual

cAVSink in cAVRateController Add a new frame to the cache.

Reimplemented from GrayLib::cAVSink.

OnHeaderStream()

HRESULT GrayLib::cVideoFSRateController::OnHeaderStream ( const cAVHeaderStream &  head, const void *  pForm, size_t  nSizeForm  )

overridevirtual

cAVSink in cAVRateController

Reimplemented from GrayLib::cAVSink.

UpdateBlockParams()

void GrayLib::cVideoFSRateController::UpdateBlockParams ( )

protected

Member Data Documentation

m_aBlocks

cArrayStruct<CBlock> GrayLib::cVideoFSRateController::m_aBlocks

protected

the blocks making up the current frame.

m_CompFrame

cHeapBlock GrayLib::cVideoFSRateController::m_CompFrame

protected

holder for the last compressed frame. key or diff. persisted for BuildCompFrame( rpCompRet )

---

The documentation for this class was generated from the following files:

• c:/Dennis/Source/Gray/GrayLib/include/AV/cVideoFS.h
• c:/Dennis/Source/Gray/GrayLib/src/AV/cVideoFS.cpp
