#include <cSSLCommon.h>

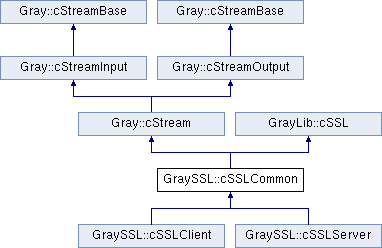

Inheritance diagram for GraySSL::cSSLCommon:

Public Member Functions
HRESULT	InitSSL ()

void	state_SSL_HANDSHAKE_WRAPUP ()

void	AttachStreams (cStreamInput pReader, cStreamOutput pWriter) noexcept

virtual void	SetSessionClear ()

HRESULT	write_SSL_MSG_ALERT (SSL_ALERT_LEVEL_TYPE level, SSL_ALERT_TYPE message)

const char *	get_AlpnChosen () const noexcept

bool	isStateHandshake () const noexcept

HRESULT	Handshake (bool bWait=false)

virtual HRESULT	ProcessStreamPacket ()=0

HRESULT	WriteMsgApp (const BYTE *buf, size_t len)

void	put_CBCRecordSplitOp (BITOP_TYPE split)

X509_Verify_t	get_VerifyResults () const

const char *	get_CipherSuiteStr () const

const char *	get_VersionStr () const

cRefPtr< cX509Crt >	get_PeerCert () const

bool	isRenegotiation () const noexcept

virtual STREAM_POS_t	GetLength () const override

virtual HRESULT	ReadX (OUT void *pData, size_t nDataSize) override

virtual size_t	SetSeekSizeMin (size_t nSizeMin=k_FILE_BLOCK_SIZE) override

virtual STREAM_SEEKRET_t	Seek (STREAM_OFFSET_t iOffset, SEEK_ORIGIN_TYPE eSeekOrigin=SEEK_Set) override
	Disambiguate Seek for cStreamBase to cStreamInput for stupid compiler. More...

virtual HRESULT	WriteX (const void *pData, size_t nDataSize) override

HRESULT	write_SSL_ALERT_SSL3_CLOSE_NOTIFY ()
	Notify the peer that the connection is being closed. More...

HRESULT	write_SSL_ALERT_SSL3_HANDSHAKE_FAILURE ()

size_t	build_TLS_EXT_MaxFragmentLength (cSSLMsgHandExt *pExt, SSL_MAX_FRAG_TYPE eMaxFrag)

HRESULT	state_SSL_XXX_CERTIFICATE_r ()

HRESULT	state_SSL_XXX_CERTIFICATE_w ()

HRESULT	state_SSL_XXX_CHANGE_CIPHER_SPEC_r ()

HRESULT	state_SSL_XXX_CHANGE_CIPHER_SPEC_w ()

HRESULT	state_SSL_XXX_FINISHED_r ()

HRESULT	state_SSL_XXX_FINISHED_w ()

HRESULT	InitHandshakeParams ()

HRESULT	BuildKeyExPremasterPSK (SSL_KeyExchange_TYPE key_ex)

cKeyWrap *	get_OwnKeyPriv () const noexcept

cX509Crt *	get_OwnCert () const noexcept

Public Member Functions inherited from Gray::cStream
virtual STREAM_POS_t	GetPosition () const override

void	SeekToBegin ()

STREAM_POS_t	SeekToEnd ()

Public Member Functions inherited from Gray::cStreamInput
	cStreamInput () noexcept

virtual	~cStreamInput ()

HRESULT	ReadAll (OUT cHeapBlock &block, size_t nSizeExtra=0)

virtual HRESULT	ReadStringLine (OUT char *pszBuffer, StrLen_t iSizeMax)

virtual HRESULT	ReadStringLine (OUT wchar_t *pszBuffer, StrLen_t iSizeMax)

HRESULT	ReadT (OUT void *pVal, size_t nSize)

template<typename TYPE >
HRESULT	ReadT (OUT TYPE &val)

template<typename TYPE >
HRESULT	ReadTN (OUT TYPE &val)

HRESULT	ReadSize (OUT size_t &nSize)

template<typename TYPE >
HRESULT	ReadSizeT (OUT TYPE &n)

HRESULT	ReadHashCode (OUT UINT32 &nHashCode)

HRESULT	ReadHashCode (OUT UINT64 &nHashCode)

HRESULT	ReadN (OUT BYTE *pBuffer, size_t nSizeMax)

template<typename _CH >
HRESULT	ReadStringN (OUT _CH *pszStr, StrLen_t iSizeMax)

virtual HRESULT	ReadPeek (void *pData, size_t nDataSize)

Public Member Functions inherited from Gray::cStreamBase
virtual	~cStreamBase ()

void	SeekToBegin ()

STREAM_POS_t	SeekToEnd ()

Public Member Functions inherited from Gray::cStreamOutput
	cStreamOutput () noexcept

virtual	~cStreamOutput ()

HRESULT	WriteT (const void *pVal, size_t nDataSize)

template<typename TYPE >
HRESULT	WriteT (TYPE val)

HRESULT	WriteSize (size_t nSize)

HRESULT	WriteHashCode (HASHCODE_t nHashCode)

HRESULT	WriteN (const void *pBuffer, size_t nSize)

template<typename _CH >
HRESULT	WriteStringN (const _CH *pszStr)

template<typename _CH >
HRESULT	WriteCharRepeat (_CH nChar, int nCount=1)

virtual HRESULT	WriteString (const char *pszStr)

virtual HRESULT	WriteString (const wchar_t *pszStr)

StrLen_t	VPrintf (const char *pszFormat, va_list args)

StrLen_t	VPrintf (const wchar_t *pszFormat, va_list args)

StrLen_t _cdecl	Printf (const char *pszFormat,...)

StrLen_t _cdecl	Printf (const wchar_t *pszFormat,...)

HRESULT	WriteStream (cStreamInput &sInp, STREAM_POS_t nSizeMax=k_FILE_BLOCK_SIZE, IStreamProgressCallback *pProgress=nullptr, TIMESYSD_t nTimeout=0)
	Copy cStreamInput to this stream. More...

virtual HRESULT	FlushX ()

Public Attributes
const cObjectSignature	m_SigCommon
	All DLL consumers must agree this is the same. sizeof(*this) More...

const bool	m_bThisIsServer
	true = cSSLServer else cSSLClient More...

const cSSLConfig &	m_Cfg
	Behavior controls. More...

SSL_VERSION_TYPE	m_nVer
	Version selected. either 0 (SSL3) or 1 (TLS1.0) More...

cStreamInput *	m_pReader
	reading operations raw stream More...

cStreamOutput *	m_pWriter
	writing operations raw stream More...

bool	m_bRenegotiationSupported
	does peer support legacy or secure renegotiation TLS_EXT_renegotiation_info More...

cSSLHandshake *	m_pHandshake
	params required only during the handshake SSL_STATE_TYPE(s) More...

cSSLSession *	m_pSessionNegotiate
	session data in negotiation. Move to m_pHandshake ? More...

cSSLSession *	m_pSessionCur
	negotiated session data. swapped from m_pSessionNegotiate More...

cSSLSession *	m_pSessionIn
	current session data (in) from m_pSessionNegotiate More...

cSSLSession *	m_pSessionOut
	current session data (out) More...

cSSLTransform *	m_pTransformNegotiate
	transform params in negotiation. Move to m_pHandshake ? More...

cSSLTransform *	m_pTransformCur
	negotiated transform params. swapped from m_pTransformNegotiate More...

cSSLTransform *	m_pTransformIn
	current transform params (in) from m_pTransformNegotiate More...

cSSLTransform *	m_pTransformOut
	current transform params (in) More...

cSSLMsgBuilder	m_in

size_t	m_nInReadPos
	caller ReadX() offset in application data m_in.m_pMsg More...

cSSLMsgBuilder	m_out
	message contents (out_iv+ivlen) More...

int	m_nEmptyMessages
	count # of 0-length encrypted messages. Watch for DoS. More...

bool	m_bClientAuth
	flag for client auth. client optionally supplies a cert if servers asks. More...

X509_Verify_t	m_eVerifyResults
	verification result for cert. More...

const char *	m_pszAlpnChosen
	extension RFC 7301 Application Layer Protocol Negotiation. More...

cHeapBlock	m_PSK

cHeapBlock	m_PSKIdentity

size_t	m_nVerifyDataSize
	length of verify data stored. <= k_VERIFY_DATA_MAX_LEN More...

BYTE	m_VerifyDataPeer [k_VERIFY_DATA_MAX_LEN]
	previous handshake verify data More...

BITOP_TYPE	m_nCBCRecordSplitOp
	flag for record splitting: BITOP_TOGGLE=disabled, BITOP_CLR=todo, BITOP_SET= done More...

cX509KeyCrtPair *	m_pKeyCrtPair
	my own certificate(s)/key(s) pair. Not freed. (server only) More...

const char *	m_pszPeerCN
	expected peer CN in case we check this against cert. More...

Static Public Attributes
static const int	k_VERIFY_DATA_MAX_LEN = 36
	Length of the verify data for secure renegotiation. SSLv3. More...

Static Public Attributes inherited from Gray::cStreamBase
static const BYTE	k_SIZE_MASK = 0x80
	Used for WriteSize() More...

static const size_t	k_FILE_BLOCK_SIZE = (32 * 1024)
	default arbitrary transfer block size. more than this is NOT more efficient. More...

Static Public Attributes inherited from GrayLib::cSSL
static const size_t	k_PSK_Size_Max = 32
	256 bits More...

static const size_t	k_MAC_Size_Max = 48
	16 to 48. SHA-384 used for HMAC. like k_HashSizeMax More...

static const size_t	k_Number_Size_Max = 1024
	Max reasonable size of a big number used for crypt purposes. 8k bits. like cBigInteger::k_SIZE_MAX. More...

static const size_t	k_Content_Size_Max = 16384
	Size of content. >= k_MaxFragLens[MAX]. More...

static const WORD	k_MaxFragLens [SSL_MAX_FRAG_LEN_QTY]

Protected Member Functions
	cSSLCommon (bool bEndpointIsServer, const cSSLConfig &rOpts) noexcept

virtual	~cSSLCommon ()

HRESULT	ReturnError (HRESULT hRes, const char *pszMsg) const

SSL_STATE_TYPE	get_State () const noexcept

void	put_State (SSL_STATE_TYPE e) noexcept

void	IncState1 (SSL_STATE_TYPE e)

HRESULT	WriteFlush (bool bWait=false)

HRESULT	WriteMsg (SSL_MSG_TYPE eMsg, size_t nContLength)

HRESULT	ReadFill (size_t nSizeExpect)

HRESULT	ReadCheckHandshake ()

HRESULT	ReadMessage ()

HRESULT	ReadProcessCompleteMsg ()

HRESULT	PrepareKeys ()

Detailed Description

Base for cSSLServer and/or cSSLClient

Constructor & Destructor Documentation

◆ cSSLCommon()

GraySSL::cSSLCommon::cSSLCommon	(	bool	bEndpointIsServer,
		const cSSLConfig &	rOpts
	)

protectednoexcept

< previous handshake verify data

◆ ~cSSLCommon()

GraySSL::cSSLCommon::~cSSLCommon ( )

protectedvirtual

Member Function Documentation

◆ AttachStreams()

void GraySSL::cSSLCommon::AttachStreams	(	cStreamInput *	pReader,
		cStreamOutput *	pWriter
	)

inlinenoexcept

Set the underlying BIO read and write callbacks

pReader read callback
pWriter write callback

◆ build_TLS_EXT_MaxFragmentLength()

size_t GraySSL::cSSLCommon::build_TLS_EXT_MaxFragmentLength	(	cSSLMsgHandExt *	pExt,
		SSL_MAX_FRAG_TYPE	eMaxFrag
	)

◆ BuildKeyExPremasterPSK()

HRESULT GraySSL::cSSLCommon::BuildKeyExPremasterPSK ( SSL_KeyExchange_TYPE key_ex )

◆ get_AlpnChosen()

const char* GraySSL::cSSLCommon::get_AlpnChosen ( ) const

inlinenoexcept

Get the name of the negotiated Application Layer Protocol. This function should be called after the handshake is completed.

Returns: Protocol name, or nullptr if no protocol was negotiated.

◆ get_CipherSuiteStr()

const char * GraySSL::cSSLCommon::get_CipherSuiteStr ( ) const

Return the name of the current ciphersuite

Returns: a string containing the ciphersuite name

◆ get_OwnCert()

cX509Crt* GraySSL::cSSLCommon::get_OwnCert ( ) const

inlinenoexcept

◆ get_OwnKeyPriv()

cKeyWrap* GraySSL::cSSLCommon::get_OwnKeyPriv ( ) const

inlinenoexcept

◆ get_PeerCert()

cRefPtr<cX509Crt> GraySSL::cSSLCommon::get_PeerCert ( ) const

◆ get_State()

SSL_STATE_TYPE GraySSL::cSSLCommon::get_State ( ) const

inlineprotectednoexcept

◆ get_VerifyResults()

X509_Verify_t GraySSL::cSSLCommon::get_VerifyResults ( ) const

Get the result of the certificate verification

Returns: 0 if successful, X509_VERIFY_UNK (-1) if result is not available (eg because the handshake was aborted too early), or a combination of BADCERT_xxx and BADCRL_xxx flags, see cX509.h

◆ get_VersionStr()

const char * GraySSL::cSSLCommon::get_VersionStr ( ) const

Return the current SSL version (SSLv3/TLSv1/etc)

Returns: a string containing the SSL version

◆ GetLength()

STREAM_POS_t GraySSL::cSSLCommon::GetLength ( ) const

overridevirtual

Return the number of data bytes available to read

Returns: how many bytes are available in the read buffer

SSL get accessors. m_nInReadPos

Reimplemented from Gray::cStream.

◆ Handshake()

HRESULT GraySSL::cSSLCommon::Handshake ( bool bWait = false )

Perform the SSL handshake as a single blocking operation. First thing on new connection.

Returns: 0 if successful, HRESULT_WIN32_C(WSAEWOULDBLOCK) or a specific SSL error code.

◆ IncState1()

void GraySSL::cSSLCommon::IncState1 ( SSL_STATE_TYPE e )

inlineprotected

◆ InitHandshakeParams()

HRESULT GraySSL::cSSLCommon::InitHandshakeParams ( )

◆ InitSSL()

HRESULT GraySSL::cSSLCommon::InitSSL ( )

Initialize an SSL context (An individual SSL context is not thread - safe)

◆ isRenegotiation()

bool GraySSL::cSSLCommon::isRenegotiation ( ) const

inlinenoexcept

◆ isStateHandshake()

bool GraySSL::cSSLCommon::isStateHandshake ( ) const

inlinenoexcept

Are we still in the handshake phase?

◆ PrepareKeys()

HRESULT GraySSL::cSSLCommon::PrepareKeys ( )

protected

◆ ProcessStreamPacket()

virtual HRESULT GraySSL::cSSLCommon::ProcessStreamPacket ( )

pure virtual

Perform a single step of the SSL handshake

Returns: 0 if successful, else HRESULT_WIN32_C(WSAEWOULDBLOCK)

Implemented in GraySSL::cSSLServer, and GraySSL::cSSLClient.

◆ put_CBCRecordSplitOp()

void GraySSL::cSSLCommon::put_CBCRecordSplitOp ( BITOP_TYPE split )

Enable / Disable 1/n-1 record splitting (Default: enable)

Note: Only affects SSLv3 and TLS 1.0, not higher versions. Does not affect non-CBC ciphersuites in any version.

◆ put_State()

void GraySSL::cSSLCommon::put_State ( SSL_STATE_TYPE e )

inlineprotectednoexcept

◆ ReadCheckHandshake()

HRESULT GraySSL::cSSLCommon::ReadCheckHandshake ( )

protected

◆ ReadFill()

HRESULT GraySSL::cSSLCommon::ReadFill ( size_t nSizeExpect )

protected

◆ ReadMessage()

HRESULT GraySSL::cSSLCommon::ReadMessage ( )

protected

Fill m_in For handshake or application data mode message. Does not work for v2 Hello message.

Returns: HRESULT_WIN32_C(ERROR_IO_INCOMPLETE)

◆ ReadProcessCompleteMsg()

HRESULT GraySSL::cSSLCommon::ReadProcessCompleteMsg ( )

protected

I finished processing the m_in message and can get a new one. (unless it has another handshake message appended) processed just 1 handshake sub packet at a time.

◆ ReadX()

HRESULT GraySSL::cSSLCommon::ReadX	(	OUT void *	pData,
		size_t	nDataSize
	)

overridevirtual

Read at most 'len' application data bytes

buf = buffer that will hold the data
len = maximum number of bytes to read
Returns
This function returns the number of bytes read, 0 for EOF, or a negative error code.

Receive application data decrypted from the SSL layer

Returns: HRESULT_WIN32_C(WSAECONNABORTED) = connection is broken.; HRESULT_WIN32_C(ERROR_IO_INCOMPLETE) = incomplete record. wait for more.

Reimplemented from Gray::cStreamInput.

◆ ReturnError()

HRESULT GraySSL::cSSLCommon::ReturnError	(	HRESULT	hRes,
		const char *	pszMsg
	)		const

protected

◆ Seek()

STREAM_SEEKRET_t GraySSL::cSSLCommon::Seek	(	STREAM_OFFSET_t	iOffset,
		SEEK_ORIGIN_TYPE	eSeekOrigin = `SEEK_Set`
	)

overridevirtual

Disambiguate Seek for cStreamBase to cStreamInput for stupid compiler.

Effect the m_in buffer.

Reimplemented from Gray::cStream.

◆ SetSeekSizeMin()

size_t GraySSL::cSSLCommon::SetSeekSizeMin ( size_t nSizeMin = k_FILE_BLOCK_SIZE )

overridevirtual

Lock a transaction for the stream. I want to Seek() back.

Reimplemented from Gray::cStreamInput.

◆ SetSessionClear()

void GraySSL::cSSLCommon::SetSessionClear ( )

virtual

Reset an already initialized SSL context for re-use while retaining application-set variables, function pointers and data.

Returns: 0 if successful, or E_OUTOFMEMORY, GRAYSSL_ERR_HW_ACCEL_FAILED or GRAYSSL_ERR_COMPRESSION_FAILED

Reimplemented in GraySSL::cSSLClient.

◆ state_SSL_HANDSHAKE_WRAPUP()

void GraySSL::cSSLCommon::state_SSL_HANDSHAKE_WRAPUP ( )

◆ state_SSL_XXX_CERTIFICATE_r()

HRESULT GraySSL::cSSLCommon::state_SSL_XXX_CERTIFICATE_r ( )

SSL_SERVER_CERTIFICATE (For client) | SSL_CLIENT_CERTIFICATE (for server)

<== ( Certificate/Alert ) ClientKeyExchange ( CertificateVerify ) ChangeCipherSpec Finished

◆ state_SSL_XXX_CERTIFICATE_w()

HRESULT GraySSL::cSSLCommon::state_SSL_XXX_CERTIFICATE_w ( )

SSL_SERVER_CERTIFICATE (for server) | SSL_CLIENT_CERTIFICATE (For client) Send my public cert.

◆ state_SSL_XXX_CHANGE_CIPHER_SPEC_r()

HRESULT GraySSL::cSSLCommon::state_SSL_XXX_CHANGE_CIPHER_SPEC_r ( )

SSL_CLIENT_CHANGE_CIPHER_SPEC (for server) or SSL_SERVER_CHANGE_CIPHER_SPEC (for client) read

◆ state_SSL_XXX_CHANGE_CIPHER_SPEC_w()

HRESULT GraySSL::cSSLCommon::state_SSL_XXX_CHANGE_CIPHER_SPEC_w ( )

SSL_CLIENT_CHANGE_CIPHER_SPEC (for client) or SSL_SERVER_CHANGE_CIPHER_SPEC (for server) write

◆ state_SSL_XXX_FINISHED_r()

HRESULT GraySSL::cSSLCommon::state_SSL_XXX_FINISHED_r ( )

SSL_SERVER_FINISHED (for client) or SSL_CLIENT_FINISHED (for server)

◆ state_SSL_XXX_FINISHED_w()

HRESULT GraySSL::cSSLCommon::state_SSL_XXX_FINISHED_w ( )

SSL_CLIENT_FINISHED (For client) or SSL_SERVER_FINISHED (for server)

◆ write_SSL_ALERT_SSL3_CLOSE_NOTIFY()

HRESULT GraySSL::cSSLCommon::write_SSL_ALERT_SSL3_CLOSE_NOTIFY ( )

Notify the peer that the connection is being closed.

◆ write_SSL_ALERT_SSL3_HANDSHAKE_FAILURE()

HRESULT GraySSL::cSSLCommon::write_SSL_ALERT_SSL3_HANDSHAKE_FAILURE ( )

◆ write_SSL_MSG_ALERT()

HRESULT GraySSL::cSSLCommon::write_SSL_MSG_ALERT	(	SSL_ALERT_LEVEL_TYPE	level,
		SSL_ALERT_TYPE	message
	)

Send an alert message

level = The alert level of the message (SSL_ALERT_LEVEL_WARNING or SSL_ALERT_LEVEL_FATAL)
message = The alert message (SSL_ALERT_MSG_*)
Returns
0 if successful, or a specific SSL error code.

◆ WriteFlush()

HRESULT GraySSL::cSSLCommon::WriteFlush ( bool bWait = false )

protected

Returns: S_OK = write complete. we can do read or write again. S_FALSE = write not complete.

◆ WriteMsg()

HRESULT GraySSL::cSSLCommon::WriteMsg	(	SSL_MSG_TYPE	eMsg,
		size_t	nContLength
	)

protected

Flush m_out Record

Returns: S_FALSE = can't complete write now.

◆ WriteMsgApp()

HRESULT GraySSL::cSSLCommon::WriteMsgApp	(	const BYTE *	buf,
		size_t	len
	)

Send application data to be encrypted by the SSL layer, taking care of max fragment length and buffer size. Maybe Send Partial.

Returns: <0 = error, else length of write. 0 = i wrote nothing.

◆ WriteX()

HRESULT GraySSL::cSSLCommon::WriteX	(	const void *	pData,
		size_t	nDataSize
	)

overridevirtual

Write exactly 'len' application data bytes

buf = buffer holding the data
len = how many bytes must be written
Returns
This function returns the number of bytes written, or a negative error code.

Note
When this function returns HRESULT_WIN32_C(WSAEWOULDBLOCK), it must be called later with the same arguments, until it returns a positive value.

This function may write less than the number of bytes requested if len is greater than the maximum record length. For arbitrary-sized messages, it should be called in a loop.

Reimplemented from Gray::cStreamOutput.

Member Data Documentation

◆ k_VERIFY_DATA_MAX_LEN

const int GraySSL::cSSLCommon::k_VERIFY_DATA_MAX_LEN = 36

static

Length of the verify data for secure renegotiation. SSLv3.

◆ m_bClientAuth

bool GraySSL::cSSLCommon::m_bClientAuth

flag for client auth. client optionally supplies a cert if servers asks.

◆ m_bRenegotiationSupported

bool GraySSL::cSSLCommon::m_bRenegotiationSupported

does peer support legacy or secure renegotiation TLS_EXT_renegotiation_info

◆ m_bThisIsServer

const bool GraySSL::cSSLCommon::m_bThisIsServer

true = cSSLServer else cSSLClient

◆ m_Cfg

const cSSLConfig& GraySSL::cSSLCommon::m_Cfg

Behavior controls.

◆ m_eVerifyResults

X509_Verify_t GraySSL::cSSLCommon::m_eVerifyResults

verification result for cert.

◆ m_in

cSSLMsgBuilder GraySSL::cSSLCommon::m_in

◆ m_nCBCRecordSplitOp

BITOP_TYPE GraySSL::cSSLCommon::m_nCBCRecordSplitOp

flag for record splitting: BITOP_TOGGLE=disabled, BITOP_CLR=todo, BITOP_SET= done

◆ m_nEmptyMessages

int GraySSL::cSSLCommon::m_nEmptyMessages

count # of 0-length encrypted messages. Watch for DoS.

◆ m_nInReadPos

size_t GraySSL::cSSLCommon::m_nInReadPos

caller ReadX() offset in application data m_in.m_pMsg

◆ m_nVer

SSL_VERSION_TYPE GraySSL::cSSLCommon::m_nVer

Version selected. either 0 (SSL3) or 1 (TLS1.0)

◆ m_nVerifyDataSize

size_t GraySSL::cSSLCommon::m_nVerifyDataSize

length of verify data stored. <= k_VERIFY_DATA_MAX_LEN

◆ m_out

cSSLMsgBuilder GraySSL::cSSLCommon::m_out

message contents (out_iv+ivlen)

◆ m_pHandshake

cSSLHandshake* GraySSL::cSSLCommon::m_pHandshake

params required only during the handshake SSL_STATE_TYPE(s)

◆ m_pKeyCrtPair

cX509KeyCrtPair* GraySSL::cSSLCommon::m_pKeyCrtPair

my own certificate(s)/key(s) pair. Not freed. (server only)

◆ m_pReader

cStreamInput* GraySSL::cSSLCommon::m_pReader

reading operations raw stream

◆ m_pSessionCur

cSSLSession* GraySSL::cSSLCommon::m_pSessionCur

negotiated session data. swapped from m_pSessionNegotiate

◆ m_pSessionIn

cSSLSession* GraySSL::cSSLCommon::m_pSessionIn

current session data (in) from m_pSessionNegotiate

◆ m_pSessionNegotiate

cSSLSession* GraySSL::cSSLCommon::m_pSessionNegotiate

session data in negotiation. Move to m_pHandshake ?

◆ m_pSessionOut

cSSLSession* GraySSL::cSSLCommon::m_pSessionOut

current session data (out)

◆ m_PSK

cHeapBlock GraySSL::cSSLCommon::m_PSK

◆ m_PSKIdentity

cHeapBlock GraySSL::cSSLCommon::m_PSKIdentity

◆ m_pszAlpnChosen

const char* GraySSL::cSSLCommon::m_pszAlpnChosen

extension RFC 7301 Application Layer Protocol Negotiation.

negotiated protocol from m_ppAlpnList. or nullptr.

◆ m_pszPeerCN

const char* GraySSL::cSSLCommon::m_pszPeerCN

expected peer CN in case we check this against cert.

◆ m_pTransformCur

cSSLTransform* GraySSL::cSSLCommon::m_pTransformCur

negotiated transform params. swapped from m_pTransformNegotiate

◆ m_pTransformIn

cSSLTransform* GraySSL::cSSLCommon::m_pTransformIn

current transform params (in) from m_pTransformNegotiate

◆ m_pTransformNegotiate

cSSLTransform* GraySSL::cSSLCommon::m_pTransformNegotiate

transform params in negotiation. Move to m_pHandshake ?

◆ m_pTransformOut

cSSLTransform* GraySSL::cSSLCommon::m_pTransformOut

current transform params (in)

◆ m_pWriter

cStreamOutput* GraySSL::cSSLCommon::m_pWriter

writing operations raw stream

◆ m_SigCommon

const cObjectSignature GraySSL::cSSLCommon::m_SigCommon

All DLL consumers must agree this is the same. sizeof(*this)

◆ m_VerifyDataPeer

BYTE GraySSL::cSSLCommon::m_VerifyDataPeer[k_VERIFY_DATA_MAX_LEN]

previous handshake verify data

The documentation for this class was generated from the following files:

c:/Dennis/Source/Gray/GraySSL/include/cSSLCommon.h
c:/Dennis/Source/Gray/GraySSL/src/cSSLCommon.cpp

Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ cSSLCommon()

◆ ~cSSLCommon()

Member Function Documentation

◆ AttachStreams()

◆ build_TLS_EXT_MaxFragmentLength()

◆ BuildKeyExPremasterPSK()

◆ get_AlpnChosen()

◆ get_CipherSuiteStr()

◆ get_OwnCert()

◆ get_OwnKeyPriv()

◆ get_PeerCert()

◆ get_State()

◆ get_VerifyResults()

◆ get_VersionStr()

◆ GetLength()

◆ Handshake()

◆ IncState1()

◆ InitHandshakeParams()

◆ InitSSL()

◆ isRenegotiation()

◆ isStateHandshake()

◆ PrepareKeys()

◆ ProcessStreamPacket()

◆ put_CBCRecordSplitOp()

◆ put_State()

◆ ReadCheckHandshake()

◆ ReadFill()

◆ ReadMessage()

◆ ReadProcessCompleteMsg()

◆ ReadX()

◆ ReturnError()

◆ Seek()

◆ SetSeekSizeMin()

◆ SetSessionClear()

◆ state_SSL_HANDSHAKE_WRAPUP()

◆ state_SSL_XXX_CERTIFICATE_r()

◆ state_SSL_XXX_CERTIFICATE_w()

◆ state_SSL_XXX_CHANGE_CIPHER_SPEC_r()

◆ state_SSL_XXX_CHANGE_CIPHER_SPEC_w()

◆ state_SSL_XXX_FINISHED_r()

◆ state_SSL_XXX_FINISHED_w()

◆ write_SSL_ALERT_SSL3_CLOSE_NOTIFY()

◆ write_SSL_ALERT_SSL3_HANDSHAKE_FAILURE()

◆ write_SSL_MSG_ALERT()

◆ WriteFlush()

◆ WriteMsg()

◆ WriteMsgApp()

◆ WriteX()

Member Data Documentation

◆ k_VERIFY_DATA_MAX_LEN

◆ m_bClientAuth

◆ m_bRenegotiationSupported

◆ m_bThisIsServer

◆ m_Cfg

◆ m_eVerifyResults

◆ m_in

◆ m_nCBCRecordSplitOp

◆ m_nEmptyMessages

◆ m_nInReadPos

◆ m_nVer

◆ m_nVerifyDataSize

◆ m_out

◆ m_pHandshake

◆ m_pKeyCrtPair

◆ m_pReader

◆ m_pSessionCur

◆ m_pSessionIn

◆ m_pSessionNegotiate

◆ m_pSessionOut

◆ m_PSK

◆ m_PSKIdentity

◆ m_pszAlpnChosen

◆ m_pszPeerCN

◆ m_pTransformCur
