#include <cQueue.h>

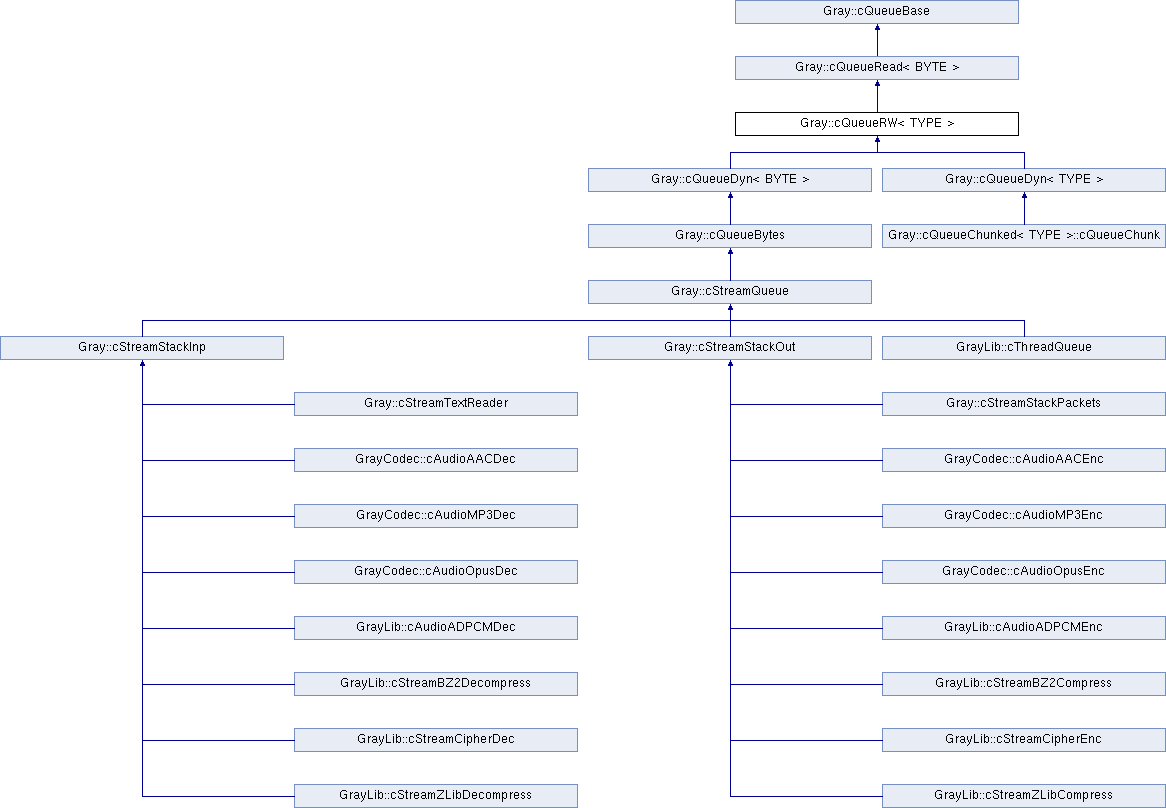

Inheritance diagram for Gray::cQueueRW< TYPE >:

Public Member Functions
	cQueueRW () noexcept

	cQueueRW (TYPE *pData, ITERATE_t iDataAlloc, ITERATE_t iReadLast, ITERATE_t iWriteLast, ITERATE_t iAutoReadCommit=0)

	cQueueRW (const TYPE *pData, ITERATE_t iDataMax)

	~cQueueRW ()

void	ReadCommitCheck ()

ITERATE_t	get_AutoReadCommit () const

void	put_AutoReadCommit (ITERATE_t iAutoReadCommit=8 *1024)

void	put_ReadIndex (ITERATE_t iReadLo)

STREAM_SEEKRET_t	SeekQ (STREAM_OFFSET_t iOffset, SEEK_ORIGIN_TYPE eSeekOrigin=SEEK_Set)

HRESULT	ReadQty (TYPE *pData, ITERATE_t iDataMaxQty)

HRESULT	ReadX (void *pData, size_t nDataSize)

bool	isFullQ () const

ITERATE_t	get_WriteQty () const

TYPE *	get_WritePtr () const

HRESULT	WriteQty (const TYPE *pData, ITERATE_t iQtyMax)

HRESULT	WriteX (const void *pData, size_t nDataSize)

void	AdvanceWrite (ITERATE_t iCount=1)

Public Member Functions inherited from Gray::cQueueRead< BYTE >
	cQueueRead (const BYTE *pData=nullptr, ITERATE_t iReadLast=0, ITERATE_t iWriteLast=0) noexcept

	~cQueueRead ()

const BYTE *	get_ReadPtr () const

void	SetQueueRead (const BYTE *pData, ITERATE_t iReadLast=0, ITERATE_t iWriteLast=0)

BYTE	Read1 (void)

HRESULT	ReadPeek (BYTE *pData, ITERATE_t iDataMaxQty)

HRESULT	ReadQty (BYTE *pData, ITERATE_t iDataMaxQty)

void	ReadCommitNow ()

Public Member Functions inherited from Gray::cQueueBase
	cQueueBase (ITERATE_t iReadLast=0, ITERATE_t iWriteLast=0) noexcept

void	InitQ (ITERATE_t iReadLast=0, ITERATE_t iWriteLast=0) noexcept

bool	isEmptyQ () const noexcept

void	EmptyQ () noexcept

ITERATE_t	get_ReadIndex () const noexcept

ITERATE_t	get_WriteIndex () const noexcept

ITERATE_t	get_ReadQty () const

void	AdvanceRead (ITERATE_t iCount=1)

STREAM_SEEKRET_t	SeekQ (STREAM_OFFSET_t iOffset, SEEK_ORIGIN_TYPE eSeekOrigin=SEEK_Set)

Protected Member Functions
void	WriteQN (const TYPE *pData, ITERATE_t iQtyMax)

Protected Attributes
ITERATE_t	m_iDataSizeAlloc
	The max qty we can write into m_pData. Maybe NOT exactly same as m_pData true OS allocated size? More...

ITERATE_t	m_iAutoReadCommit
	Read data is destroyed once read more than this amount. make more room for writing. 0 = don't do this, just fail write if we run out of space. More...

Protected Attributes inherited from Gray::cQueueRead< BYTE >
BYTE *	m_pData
	NOT owned/managed block of memory I read from. not freed on destruct. More...

Protected Attributes inherited from Gray::cQueueBase
ITERATE_t	m_iReadLast
	old items removed/read from here. More...

ITERATE_t	m_iWriteLast
	new items added/written here. end of read. More...

Detailed Description

template<class TYPE = BYTE>
class Gray::cQueueRW< TYPE >

Create an simple arbitrary queue of TYPE elements. can read and write.

Note: This queue does NOT wrap. Does NOT grow. Non managed memory.; This is NOT thread safe; Does NOT free memory on destruct. Use cQueueBytes for that. Does NOT auto expand buffer to hold more data if write past end.

Constructor & Destructor Documentation

◆ cQueueRW() [1/3]

template<class TYPE = BYTE>

Gray::cQueueRW< TYPE >::cQueueRW ( )

inlinenoexcept

◆ cQueueRW() [2/3]

template<class TYPE = BYTE>

Gray::cQueueRW< TYPE >::cQueueRW	(	TYPE *	pData,
		ITERATE_t	iDataAlloc,
		ITERATE_t	iReadLast,
		ITERATE_t	iWriteLast,
		ITERATE_t	iAutoReadCommit = `0`
	)

inlineexplicit

◆ cQueueRW() [3/3]

template<class TYPE = BYTE>

Gray::cQueueRW< TYPE >::cQueueRW	(	const TYPE *	pData,
		ITERATE_t	iDataMax
	)

inlineexplicit

◆ ~cQueueRW()

template<class TYPE = BYTE>

Gray::cQueueRW< TYPE >::~cQueueRW ( )

inline

Does NOT free m_pData memory.

Member Function Documentation

◆ AdvanceWrite()

template<class TYPE = BYTE>

void Gray::cQueueRW< TYPE >::AdvanceWrite ( ITERATE_t iCount = 1 )

inline

paired with GetWritePrepared

◆ get_AutoReadCommit()

template<class TYPE = BYTE>

ITERATE_t Gray::cQueueRW< TYPE >::get_AutoReadCommit ( ) const

inline

◆ get_WritePtr()

template<class TYPE = BYTE>

TYPE* Gray::cQueueRW< TYPE >::get_WritePtr ( ) const

inline

get start of data i could write directly. contiguous

◆ get_WriteQty()

template<class TYPE = BYTE>

ITERATE_t Gray::cQueueRW< TYPE >::get_WriteQty ( ) const

inline

How much space is avail for write into buffer? (given the current m_iDataSizeAlloc allocation size)

Returns: Qty of TYPE

◆ isFullQ()

template<class TYPE = BYTE>

bool Gray::cQueueRW< TYPE >::isFullQ ( ) const

inline

◆ put_AutoReadCommit()

template<class TYPE = BYTE>

void Gray::cQueueRW< TYPE >::put_AutoReadCommit ( ITERATE_t iAutoReadCommit = 8 * 1024 )

inline

For SetSeekSizeMin

iAutoReadCommit = the size at which we 'commit' contents and erase already read data. to make room for more writing. 0 = never do auto commit. we are reading and we may need to Seek back.

◆ put_ReadIndex()

template<class TYPE = BYTE>

void Gray::cQueueRW< TYPE >::put_ReadIndex ( ITERATE_t iReadLo )

inline

Reset the read index back to some new place.

◆ ReadCommitCheck()

template<class TYPE = BYTE>

void Gray::cQueueRW< TYPE >::ReadCommitCheck ( )

inline

is it time to attempt to reclaim the space in the queue

Note: beware of the roll back that protocols like to do if they get a bad request/underflow. can't Seek back now ?

◆ ReadQty()

template<class TYPE = BYTE>

HRESULT Gray::cQueueRW< TYPE >::ReadQty	(	TYPE *	pData,
		ITERATE_t	iDataMaxQty
	)

inline

Just read a block. like ReadX but for TYPE

Returns: iQty i actually read.

◆ ReadX()

template<class TYPE = BYTE>

HRESULT Gray::cQueueRW< TYPE >::ReadX	(	void *	pData,
		size_t	nDataSize
	)

inline

bytes

◆ SeekQ()

template<class TYPE = BYTE>

STREAM_SEEKRET_t Gray::cQueueRW< TYPE >::SeekQ	(	STREAM_OFFSET_t	iOffset,
		SEEK_ORIGIN_TYPE	eSeekOrigin = `SEEK_Set`
	)

inline

move the current read start location.

iOffset = quantity of TYPE eSeekOrigin = SEEK_CUR, etc
Returns
the New position, <0=FAILED = INVALID_SET_FILE_POINTER

◆ WriteQN()

template<class TYPE = BYTE>

void Gray::cQueueRW< TYPE >::WriteQN	(	const TYPE *	pData,
		ITERATE_t	iQtyMax
	)

inlineprotected

Copy stuff into the Q ASSUME iQtyMax is safe size.

◆ WriteQty()

template<class TYPE = BYTE>

HRESULT Gray::cQueueRW< TYPE >::WriteQty	(	const TYPE *	pData,
		ITERATE_t	iQtyMax
	)

inline

add iQty * TYPE data to the q. like WriteX but for TYPE

Returns: How much can did write in to the queue, before it gets full.

◆ WriteX()

template<class TYPE = BYTE>

HRESULT Gray::cQueueRW< TYPE >::WriteX	(	const void *	pData,
		size_t	nDataSize
	)

inline

nDataSize = bytes NOT instances of TYPE

Member Data Documentation

◆ m_iAutoReadCommit

template<class TYPE = BYTE>

ITERATE_t Gray::cQueueRW< TYPE >::m_iAutoReadCommit

protected

Read data is destroyed once read more than this amount. make more room for writing. 0 = don't do this, just fail write if we run out of space.

◆ m_iDataSizeAlloc

template<class TYPE = BYTE>

ITERATE_t Gray::cQueueRW< TYPE >::m_iDataSizeAlloc

protected

The max qty we can write into m_pData. Maybe NOT exactly same as m_pData true OS allocated size?

The documentation for this class was generated from the following file:

c:/Dennis/Source/Gray/GrayCore/include/cQueue.h
