GrayLib::cNetSocketBase Class Reference

#include <cNetSocket.h>

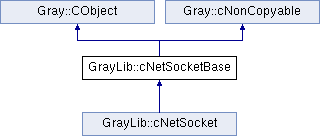

Inheritance diagram for GrayLib::cNetSocketBase:

Public Member Functions
	cNetSocketBase ()
virtual	~cNetSocketBase ()
virtual bool	isValidCheck () const noexcept
	< memory allocation and structure definitions are valid. More...
bool	isValidSocket () const noexcept
	operator SOCKET () const noexcept
bool	AttachSocket (SOCKET hSocket)
SOCKET	DetachSocket ()
virtual void	Close ()
bool	Listen (int iMaxBacklogConnections=SOMAXCONN)
int	Send (const void *pData, int iLen, int nFlags=0)
int	Receive (void *pBuffer, int nBufLen, int nFlags=0)
bool	IOCtl (long lCmd, unsigned long *pnArgs) const
bool	SetSockOpt (int nOptionName, const void *optval, socklen_t optlen, int nLevel=SOL_SOCKET) const
bool	GetSockOpt (int nOptionName, void *optval, socklen_t *pOptLen, int nLevel=SOL_SOCKET) const
Public Member Functions inherited from Gray::CObject
virtual	~CObject ()
virtual void	AssertValid () const
	< memory allocation and structure definitions are valid. More...
virtual void	Serialize (cArchive &a)

Static Public Attributes
static ITERATE_t	sm_iAllocSockets = 0
	Count all open sockets. Watch out for WSADATA.iMaxSockets. More...

Protected Member Functions
SOCKET	get_HSocket () const noexcept
bool	Connect (const struct sockaddr *pAddr, socklen_t nAddrLen)
bool	ShutDown (SOCKET_ShutDown_TYPE nHow=SOCKET_ShutDown_sends)
Protected Member Functions inherited from Gray::cNonCopyable
	cNonCopyable () noexcept
	Force the use of Factory creation via protected constructor. More...
	~cNonCopyable () noexcept

Detailed Description

Wrapper for raw OS SOCKET. OS level of buffering only. mimic MFC CSocket/CAsyncSocket as a base class for cNetSocket

Constructor & Destructor Documentation

cNetSocketBase()

GrayLib::cNetSocketBase::cNetSocketBase

(

)

~cNetSocketBase()

GrayLib::cNetSocketBase::~cNetSocketBase ( )

virtual

Note

Virtuals don't work properly here!

Member Function Documentation

AttachSocket()

bool GrayLib::cNetSocketBase::AttachSocket

(

SOCKET

hSocket

)

Manage a socket created from some other mechanism. AKA Attach() in MFC

Close()

void GrayLib::cNetSocketBase::Close ( )

virtual

Reimplemented in GrayLib::cNetSocket.

Connect()

bool GrayLib::cNetSocketBase::Connect ( const struct sockaddr *  pAddr, socklen_t  nAddrLen  )

inlineprotected

With a nonblocking socket, the connection attempt cannot be completed immediately. In this case, connect will return SOCKET_ERROR

DetachSocket()

SOCKET GrayLib::cNetSocketBase::DetachSocket

(

)

AKA Detach() in MFC the caller now owns the socket. not auto destroyed. no close.

get_HSocket()

SOCKET GrayLib::cNetSocketBase::get_HSocket ( ) const

inlineprotectednoexcept

Get the low level socket handle.

GetSockOpt()

bool GrayLib::cNetSocketBase::GetSockOpt	(	int	nOptionName,
		void *	optval,
		socklen_t *	pOptLen,
		int	nLevel = SOL_SOCKET
	)		const

nLevel = SOL_SOCKET or IPPROTO_TCP. (same as nProtocolType in socket() ??) nOptionName = SO_CONNECT_TIME

IOCtl()

bool GrayLib::cNetSocketBase::IOCtl	(	long	lCmd,
		unsigned long *	pnArgs
	)		const

Like MFC CAsyncSocket IOCtl

• lCmd = FIONBIO = set/clear non-blocking i/o FIOASYNC = set/clear async i/o FIONREAD = read how much data is ready to read.

  Returns

  true = success

isValidCheck()

bool GrayLib::cNetSocketBase::isValidCheck ( ) const

virtualnoexcept

< memory allocation and structure definitions are valid.

CObject memory allocation and structure definitions are valid.

NOT in MFC so use COBJECT_IsValidCheck to call.

Note

This can't be called in constructors and destructors of course !

Reimplemented from Gray::CObject.

isValidSocket()

bool GrayLib::cNetSocketBase::isValidSocket ( ) const

inlinenoexcept

Is the socket created? Though it may not be connected. CreateSocket was called ?

Listen()

bool GrayLib::cNetSocketBase::Listen ( int  iMaxBacklogConnections = SOMAXCONN )

inline

The listen function places a socket in a state in which it is listening for an incoming connection. NON blocking. SOCKETSTATE_Listening

operator SOCKET()

GrayLib::cNetSocketBase::operator SOCKET ( ) const

inlinenoexcept

Receive()

int GrayLib::cNetSocketBase::Receive ( void *  pBuffer, int  nBufLen, int  nFlags = 0  )

inline

try to get data from the socket.

• nFlags = MSG_PEEK or MSG_OOB nBufLen = 0 = wait for data but don't read it.

  Returns

  length read, = 0 is gracefully closed. = SOCKET_ERROR (-1). errno=WSAEWOULDBLOCK. etc.

Send()

int GrayLib::cNetSocketBase::Send ( const void *  pData, int  iLen, int  nFlags = 0  )

inline

• flags = MSG_DONTROUTE, MSG_OOB, (linux MSG_NOSIGNAL)

  Returns

  length sent, else SOCKET_ERROR = failed. (<0) < iLen = Queue is full. blocked from writing for now.

  Note

  This can and DOES return less than iLen sent. (if non blocking mode) Send() has a limited Queue size and will fill quickly. Max send is typically packet size ~1200 ??

SetSockOpt()

bool GrayLib::cNetSocketBase::SetSockOpt	(	int	nOptionName,
		const void *	optval,
		socklen_t	optlen,
		int	nLevel = SOL_SOCKET
	)		const

nLevel = SOL_SOCKET or IPPROTO_TCP. (same as nProtocolType in socket() ??) nOptionName = SO_CONNECT_TIME, ...

ShutDown()

bool GrayLib::cNetSocketBase::ShutDown ( SOCKET_ShutDown_TYPE  nHow = SOCKET_ShutDown_sends )

inlineprotected

Called as part of CloseFlush. before Close() _WIN32 = The shutdown function does NOT block regardless of the SO_LINGER setting on the socket.

• nHow = SD_BOTH = 2

Member Data Documentation

sm_iAllocSockets

ITERATE_t GrayLib::cNetSocketBase::sm_iAllocSockets = 0

static

Count all open sockets. Watch out for WSADATA.iMaxSockets.

---

The documentation for this class was generated from the following files:

• c:/Dennis/Source/Gray/GrayLib/include/Net/cNetSocket.h
• c:/Dennis/Source/Gray/GrayLib/src/Net/cNetSocket.cpp
