#include <cNetSocket.h>

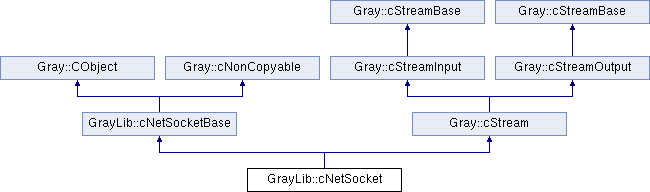

Inheritance diagram for GrayLib::cNetSocket:

Public Member Functions
	cNetSocket ()

	cNetSocket (SOCKET hSocket)

	cNetSocket (const cNetSocket &src)

virtual	~cNetSocket ()

cNetSocket &	operator= (const cNetSocket &src)

virtual void	Close () override

bool	AttachSocket (SOCKET hSocket, long lEvent=0)

HRESULT	BindAddr (const cNetAddress &SockAddr)

bool	Listen (int iMaxBacklogConnections=SOMAXCONN)

HRESULT	ConnectAddr (const cNetAddress &rSockAddr)

HRESULT	Accept (OUT cNetSocket &rConnectedSocket, OUT cNetAddress *pConnectedSocketAddr=nullptr)

HRESULT	CreateSocket (sa_family_t nAddressFamily=AF_INET, int nSocketType=SOCK_STREAM, IPPROTO_TYPE nProtocolType=IPPROTO_TCP)

HRESULT	CreateConnect (const cNetAddress &SockAddr, int nSocketType=SOCK_STREAM, IPPROTO_TYPE nProtocolType=IPPROTO_TCP)

HRESULT	CreateConnect (const cNetAddressArray &rSockAddrs, int nSocketType=SOCK_STREAM, IPPROTO_TYPE nProtocolType=IPPROTO_TCP)

HRESULT	CreateBind (const cNetAddress &SockAddr, int nSocketType=SOCK_STREAM, IPPROTO_TYPE nProtocolType=IPPROTO_TCP)

HRESULT	CreateBindFirst (const cNetAddressArray &rSockAddrs, int nSocketType=SOCK_STREAM, IPPROTO_TYPE nProtocolType=IPPROTO_TCP)

HRESULT	CloseFlush (TIMESECD_t tWait=1)

bool	isConnecting () const noexcept

bool	isConnected () const noexcept

bool	isConnected2 () const noexcept

void	SetStateEstablished () noexcept

SOCKET	get_HSocket () const noexcept

HASHCODE_t	get_HashCode () const noexcept

bool	GetAddrSock (OUT cNetAddress &SockAddr) const

bool	GetAddrPeer (OUT cNetAddress &SockAddr) const

HRESULT	SendTo (const void *pData, size_t iLen, const cNetAddress &SockAddr, int nFlags=0)

HRESULT	ReceiveFrom (void *pBuffer, size_t nBufLen, cNetAddress &SockAddr, int nFlags=0)

cNetAddress	get_AddrSock () const

cNetAddress	get_AddrPeer () const

bool	isBlockingMode () const

bool	put_BlockingMode (bool bBlock)

bool	put_BlockingTimeoutRx (TIMESECD_t tSec)

bool	put_BlockingTimeoutTx (TIMESECD_t tSec)

bool	put_Nagle (bool bDelay)

bool	put_KeepAlive (bool bKeepAlive)

bool	put_Async (bool bAsync)

bool	put_ReuseAddr (bool bReuse)

int	get_BufferSizeRx () const

bool	put_BufferSizeRx (int iSize)

int	get_BufferSizeTx () const

bool	put_BufferSizeTx (int iSize)

int	get_ReadReady () const

virtual HRESULT	WriteX (const void *pData, size_t nDataSize) override

virtual HRESULT	ReadX (void *pData, size_t nDataSize) override

virtual HRESULT	ReadPeek (void *pData=nullptr, size_t nDataSize=1) override

	UNITTEST_FRIEND (cNetSocket)

Public Member Functions inherited from GrayLib::cNetSocketBase
	cNetSocketBase ()

virtual	~cNetSocketBase ()

virtual bool	isValidCheck () const noexcept
	< memory allocation and structure definitions are valid. More...

bool	isValidSocket () const noexcept

	operator SOCKET () const noexcept

bool	AttachSocket (SOCKET hSocket)

SOCKET	DetachSocket ()

bool	Listen (int iMaxBacklogConnections=SOMAXCONN)

int	Send (const void *pData, int iLen, int nFlags=0)

int	Receive (void *pBuffer, int nBufLen, int nFlags=0)

bool	IOCtl (long lCmd, unsigned long *pnArgs) const

bool	SetSockOpt (int nOptionName, const void *optval, socklen_t optlen, int nLevel=SOL_SOCKET) const

bool	GetSockOpt (int nOptionName, void optval, socklen_t pOptLen, int nLevel=SOL_SOCKET) const

Public Member Functions inherited from Gray::CObject
virtual	~CObject ()

virtual void	AssertValid () const
	< memory allocation and structure definitions are valid. More...

virtual void	Serialize (cArchive &a)

Public Member Functions inherited from Gray::cStream
virtual STREAM_SEEKRET_t	Seek (STREAM_OFFSET_t iOffset, SEEK_ORIGIN_TYPE eSeekOrigin=SEEK_Set) override
	Disambiguate Seek for cStreamBase to cStreamInput for stupid compiler. More...

virtual STREAM_POS_t	GetPosition () const override

virtual STREAM_POS_t	GetLength () const override

void	SeekToBegin ()

STREAM_POS_t	SeekToEnd ()

Public Member Functions inherited from Gray::cStreamInput
	cStreamInput () noexcept

virtual	~cStreamInput ()

virtual size_t	SetSeekSizeMin (size_t nSizeMin=k_FILE_BLOCK_SIZE)

virtual HRESULT	ReadX (OUT void *pData, size_t nDataSize)

HRESULT	ReadAll (OUT cHeapBlock &block, size_t nSizeExtra=0)

virtual HRESULT	ReadStringLine (OUT char *pszBuffer, StrLen_t iSizeMax)

virtual HRESULT	ReadStringLine (OUT wchar_t *pszBuffer, StrLen_t iSizeMax)

HRESULT	ReadT (OUT void *pVal, size_t nSize)

template<typename TYPE >
HRESULT	ReadT (OUT TYPE &val)

template<typename TYPE >
HRESULT	ReadTN (OUT TYPE &val)

HRESULT	ReadSize (OUT size_t &nSize)

template<typename TYPE >
HRESULT	ReadSizeT (OUT TYPE &n)

HRESULT	ReadHashCode (OUT UINT32 &nHashCode)

HRESULT	ReadHashCode (OUT UINT64 &nHashCode)

HRESULT	ReadN (OUT BYTE *pBuffer, size_t nSizeMax)

template<typename _CH >
HRESULT	ReadStringN (OUT _CH *pszStr, StrLen_t iSizeMax)

Public Member Functions inherited from Gray::cStreamBase
virtual	~cStreamBase ()

void	SeekToBegin ()

STREAM_POS_t	SeekToEnd ()

Public Member Functions inherited from Gray::cStreamOutput
	cStreamOutput () noexcept

virtual	~cStreamOutput ()

HRESULT	WriteT (const void *pVal, size_t nDataSize)

template<typename TYPE >
HRESULT	WriteT (TYPE val)

HRESULT	WriteSize (size_t nSize)

HRESULT	WriteHashCode (HASHCODE_t nHashCode)

HRESULT	WriteN (const void *pBuffer, size_t nSize)

template<typename _CH >
HRESULT	WriteStringN (const _CH *pszStr)

template<typename _CH >
HRESULT	WriteCharRepeat (_CH nChar, int nCount=1)

virtual HRESULT	WriteString (const char *pszStr)

virtual HRESULT	WriteString (const wchar_t *pszStr)

StrLen_t	VPrintf (const char *pszFormat, va_list args)

StrLen_t	VPrintf (const wchar_t *pszFormat, va_list args)

StrLen_t _cdecl	Printf (const char *pszFormat,...)

StrLen_t _cdecl	Printf (const wchar_t *pszFormat,...)

HRESULT	WriteStream (cStreamInput &sInp, STREAM_POS_t nSizeMax=k_FILE_BLOCK_SIZE, IStreamProgressCallback *pProgress=nullptr, TIMESYSD_t nTimeout=0)
	Copy cStreamInput to this stream. More...

virtual HRESULT	FlushX ()

Static Public Member Functions
static HRESULT	GetLastError ()

static HRESULT	GetLastErrorDef (HRESULT hResDef=E_FAIL)

Public Attributes
SOCKETSTATE_TYPE	m_eState
	What is the state of the socket. e.g. SOCKETSTATE_Disconnected. More...

Additional Inherited Members
Static Public Attributes inherited from GrayLib::cNetSocketBase
static ITERATE_t	sm_iAllocSockets = 0
	Count all open sockets. Watch out for WSADATA.iMaxSockets. More...

Static Public Attributes inherited from Gray::cStreamBase
static const BYTE	k_SIZE_MASK = 0x80
	Used for WriteSize() More...

static const size_t	k_FILE_BLOCK_SIZE = (32 * 1024)
	default arbitrary transfer block size. more than this is NOT more efficient. More...

Protected Member Functions inherited from GrayLib::cNetSocketBase
SOCKET	get_HSocket () const noexcept

bool	Connect (const struct sockaddr *pAddr, socklen_t nAddrLen)

bool	ShutDown (SOCKET_ShutDown_TYPE nHow=SOCKET_ShutDown_sends)

Protected Member Functions inherited from Gray::cNonCopyable
	cNonCopyable () noexcept
	Force the use of Factory creation via protected constructor. More...

	~cNonCopyable () noexcept

Detailed Description

Based on the MFC CSocket "#include <afxsock.h>", Similar to MFC CAsyncSocket,CSocket.

Note: Must call cNetSystem. MFC Must call AfxSocketInit(); at some point ?; use GetAddrSock GetAddrPeer to figure out the state of the socket. SOCKETSTATE_TYPE

Constructor & Destructor Documentation

◆ cNetSocket() [1/3]

GrayLib::cNetSocket::cNetSocket ( )

◆ cNetSocket() [2/3]

GrayLib::cNetSocket::cNetSocket ( SOCKET hSocket )

◆ cNetSocket() [3/3]

GrayLib::cNetSocket::cNetSocket ( const cNetSocket & src )

Note: This is dangerous as it might be duping a cNetSocket

◆ ~cNetSocket()

GrayLib::cNetSocket::~cNetSocket ( )

virtual

Member Function Documentation

◆ Accept()

HRESULT GrayLib::cNetSocket::Accept	(	OUT cNetSocket &	rConnectedSocket,
		OUT cNetAddress *	pConnectedSocketAddr = `nullptr`
	)

We are a listener and find an incoming connection.

Note

The M$ documents say Accept() does NOT block if the read signal is set. Not sure i believe it.

rConnectedSocket = the new socket. pSockAddr = the address source. (optional)

Returns: S_OK. rConnectedSocket = the new socket. rAddr = the address source WSANOTINITIALISED, HRESULT_WIN32_C(WSAEWOULDBLOCK), etc

◆ AttachSocket()

bool GrayLib::cNetSocket::AttachSocket	(	SOCKET	hSocket,
		long	lEvent = `0`
	)

◆ BindAddr()

HRESULT GrayLib::cNetSocket::BindAddr ( const cNetAddress & SockAddr )

inline

Bind outgoing or incoming (listen) socket to a particular address:port Prepare to listen on a port. (as a server)

SockAddr = INADDR_ANY = all addresses with this port. SockAddr.port = 0 = k_NET_PORT_INVALID = pick any free port.
Returns
S_OK = success WSAEADDRINUSE or EADDRINUSE(98) = "Address already in use"

◆ Close()

void GrayLib::cNetSocket::Close ( void )

overridevirtual

support cStream Maybe we should call CloseFlush() instead.

Reimplemented from GrayLib::cNetSocketBase.

◆ CloseFlush()

HRESULT GrayLib::cNetSocket::CloseFlush ( TIMESECD_t tWait = 1 )

flush/purge/SO_LINGER before closing. blocks only if in blocking mode.

tWait = how long to wait for data to clear.
Returns
S_OK = fully flushed.

◆ ConnectAddr()

HRESULT GrayLib::cNetSocket::ConnectAddr ( const cNetAddress & rSockAddr )

request a TCP connection to a server. (listener) if ! isBlocking() we get a FD_CONNECT back when complete. OnEventConnect() then call SetStateEstablished() ASSUME rAddr.MakeValidHostAddr() was already called. // This can block!! ASSUME CreateSocket() was called

Returns: S_OK HRESULT_WIN32_C(WSAEWOULDBLOCK) = put_Blocking(false) and would have blocked.

◆ CreateBind()

HRESULT GrayLib::cNetSocket::CreateBind	(	const cNetAddress &	SockAddr,
		int	nSocketType = `SOCK_STREAM`,
		IPPROTO_TYPE	nProtocolType = `IPPROTO_TCP`
	)

Create the socket and Prepare to listen on a port. (as a server)

rAddr.nAddressFamily = Format = AF_INET, AF_INET6, AF_IPX ? nSocketType = SOCK_STREAM,SOCK_DGRAM,SOCK_RAW nProtocolType = IPPROTO_TCP,IPPROTO_UDP
Note
rAddr.addr = INADDR_ANY = 0 = all sockets with a given port. rAddr.port = 0 = pick a random free port. must do GetAddrSock() to get it.

Returns
S_OK = success

◆ CreateBindFirst()

HRESULT GrayLib::cNetSocket::CreateBindFirst	(	const cNetAddressArray &	rSockAddrs,
		int	nSocketType = `SOCK_STREAM`,
		IPPROTO_TYPE	nProtocolType = `IPPROTO_TCP`
	)

Bind to the first address from a list that succeeds. (from cNetDNS) Given a list of addresses, pick the first that works. Maybe AF_INET6 (ip6) or AF_INET (ip4) ?

◆ CreateConnect() [1/2]

HRESULT GrayLib::cNetSocket::CreateConnect	(	const cNetAddress &	SockAddr,
		int	nSocketType = `SOCK_STREAM`,
		IPPROTO_TYPE	nProtocolType = `IPPROTO_TCP`
	)

Create the outgoing socket and connect. blocking. (as a client)

Note: creates blocking socket by default. nSocketType=SOCK_STREAM, IPPROTO_TYPE nProtocolType=IPPROTO_TCP

◆ CreateConnect() [2/2]

HRESULT GrayLib::cNetSocket::CreateConnect	(	const cNetAddressArray &	rSockAddrs,
		int	nSocketType = `SOCK_STREAM`,
		IPPROTO_TYPE	nProtocolType = `IPPROTO_TCP`
	)

Given a list of addresses, pick the first that works. (from cNetDNS) ASSUME default is a blocking call if IPPROTO_TCP

◆ CreateSocket()

HRESULT GrayLib::cNetSocket::CreateSocket	(	sa_family_t	nAddressFamily = `AF_INET`,
		int	nSocketType = `SOCK_STREAM`,
		IPPROTO_TYPE	nProtocolType = `IPPROTO_TCP`
	)

create a SOCKET like the M$ WSASocket()

nAddressFamily = Format = AF_INET=2, AF_INET6, AF_IPX ? (PF_INET) nSocketType = SOCK_STREAM,SOCK_DGRAM,SOCK_RAW nProtocolType = IPPROTO_TCP,IPPROTO_UDP
Returns
S_OK

◆ get_AddrPeer()

cNetAddress GrayLib::cNetSocket::get_AddrPeer ( ) const

get the far side address of the connection. this socket is connected to a remote port?

◆ get_AddrSock()

cNetAddress GrayLib::cNetSocket::get_AddrSock ( ) const

get the local side of the connection. this socket is bound to a port?

◆ get_BufferSizeRx()

int GrayLib::cNetSocket::get_BufferSizeRx ( ) const

get size of low level read buffer. SO_RCVBUF

◆ get_BufferSizeTx()

int GrayLib::cNetSocket::get_BufferSizeTx ( ) const

how big is the low level write buffer? SO_SNDBUF

◆ get_HashCode()

HASHCODE_t GrayLib::cNetSocket::get_HashCode ( ) const

inlinenoexcept

A unique hashcode for the socket.

◆ get_HSocket()

SOCKET GrayLib::cNetSocket::get_HSocket ( ) const

inlinenoexcept

Get the low level socket handle.

◆ get_ReadReady()

int GrayLib::cNetSocket::get_ReadReady ( ) const

is there data to be read ? Non blocking.

Returns: The number of bytes ready to be read.

◆ GetAddrPeer()

bool GrayLib::cNetSocket::GetAddrPeer ( OUT cNetAddress & SockAddr ) const

Get the address of the far end. SOCKETSTATE_Connecting to SOCKETSTATE_Established

Returns: true = success else call cNetSocket::GetLastError() for better error code.

◆ GetAddrSock()

bool GrayLib::cNetSocket::GetAddrSock ( OUT cNetAddress & SockAddr ) const

Get the address of the near end. (us) SOCKETSTATE_Bound

Returns: true = success else call cNetSocket::GetLastError() for better error code.

◆ GetLastError()

static HRESULT GrayLib::cNetSocket::GetLastError ( )

inlinestatic

◆ GetLastErrorDef()

static HRESULT GrayLib::cNetSocket::GetLastErrorDef ( HRESULT hResDef = E_FAIL )

inlinestatic

An error occurred. try to find out why.

◆ isBlockingMode()

bool GrayLib::cNetSocket::isBlockingMode ( ) const

is FIONBIO or O_NONBLOCK set ? NOT the same as MFC CSocket.IsBlocking() ?? (currently blocking vs would/might block)

◆ isConnected()

bool GrayLib::cNetSocket::isConnected ( ) const

inlinenoexcept

◆ isConnected2()

bool GrayLib::cNetSocket::isConnected2 ( ) const

inlinenoexcept

Is isConnecting() or isConnected()? May be connecting but not fully complete yet.

◆ isConnecting()

bool GrayLib::cNetSocket::isConnecting ( ) const

inlinenoexcept

◆ Listen()

bool GrayLib::cNetSocket::Listen ( int iMaxBacklogConnections = SOMAXCONN )

inline

The listen function places a SOCKETSTATE_Bound socket in a state in which it is listening for an incoming connection. NON blocking.

◆ operator=()

cNetSocket& GrayLib::cNetSocket::operator= ( const cNetSocket & src )

inline

Note: This is dangerous as it might be duping a cNetSocket

◆ put_Async()

bool GrayLib::cNetSocket::put_Async ( bool bAsync )

FIOASYNC allow async notify. send SIGIO signal to a process when ready. (linux)

Returns: true = success

Note: should set FIOSETOWN as well ??

◆ put_BlockingMode()

bool GrayLib::cNetSocket::put_BlockingMode ( bool bBlock )

Will read,write,accept,connect block when called ? default is to block. O_NONBLOCK or F_SETFL on other systems ?

Returns: true = success

◆ put_BlockingTimeoutRx()

bool GrayLib::cNetSocket::put_BlockingTimeoutRx ( TIMESECD_t tSec )

assume isBlockingMode

tSec = Time in seconds for blocking rx operations

◆ put_BlockingTimeoutTx()

bool GrayLib::cNetSocket::put_BlockingTimeoutTx ( TIMESECD_t tSec )

assume isBlockingMode

tSec = Time in seconds for blocking tx operations

◆ put_BufferSizeRx()

bool GrayLib::cNetSocket::put_BufferSizeRx ( int iSize )

set size of low level read buffer. SO_RCVBUF

◆ put_BufferSizeTx()

bool GrayLib::cNetSocket::put_BufferSizeTx ( int iSize )

set size of low level write buffer. SO_SNDBUF

◆ put_KeepAlive()

bool GrayLib::cNetSocket::put_KeepAlive ( bool bKeepAlive )

Send keep alive packets or not. http://msdn.microsoft.com/en-us/library/ee470551%28VS.85%29.aspx

◆ put_Nagle()

bool GrayLib::cNetSocket::put_Nagle ( bool bDelay )

TCP_NODELAY Enable or disable Nagle algorithm for the socket. Default = delay is true/active. (for _WIN32) doesn't send bytes until it has full packet or time has passed.

bDelay = false = disable NAGLE algorithm for data compression/coalescing. Send as fast as we can. we handle packing ourselves.

◆ put_ReuseAddr()

bool GrayLib::cNetSocket::put_ReuseAddr ( bool bReuse )

SO_REUSEADDR is opposite of SO_EXCLUSIVEADDRUSE

◆ ReadPeek()

HRESULT GrayLib::cNetSocket::ReadPeek	(	void *	pData = `nullptr`,
		size_t	nDataSize = `1`
	)

overridevirtual

Test if there is data to read. Non blocking. support cStream

Reimplemented from Gray::cStreamInput.

◆ ReadX()

HRESULT GrayLib::cNetSocket::ReadX	(	void *	pData,
		size_t	nDataSize
	)

overridevirtual

Read data. May block if blocking mode. support cStream

Returns: 0 = no data ready. Never return HRESULT_WIN32_C(WSAEWOULDBLOCK) <0 = FAILURE. remote close of socket etc. No data was dequeued.

◆ ReceiveFrom()

HRESULT GrayLib::cNetSocket::ReceiveFrom	(	void *	pBuffer,
		size_t	nBufLen,
		cNetAddress &	SockAddr,
		int	nFlags = `0`
	)

Receive UDP (if any)

Returns: length of the UDP packet or SOCKET_ERROR = -1 <= 0 is closed or error.

◆ SendTo()

HRESULT GrayLib::cNetSocket::SendTo	(	const void *	pData,
		size_t	iLen,
		const cNetAddress &	SockAddr,
		int	nFlags = `0`
	)

Send UDP to a specific address. don't bother checking isValidSocket() as the function may fail for us. m_hSocket not set is OK.

flags = MSG_DONTROUTE, MSG_OOB
Returns
length sent. <0 = error

◆ SetStateEstablished()

void GrayLib::cNetSocket::SetStateEstablished ( )

inlinenoexcept

Only externally called if ! isBlocking() We know we are fully connected if blocking outgoing connect returns.

◆ UNITTEST_FRIEND()

GrayLib::cNetSocket::UNITTEST_FRIEND ( cNetSocket )

◆ WriteX()

HRESULT GrayLib::cNetSocket::WriteX	(	const void *	pData,
		size_t	nDataSize
	)

overridevirtual

Write data to the (usually small) low level output buffers. May block if blocking mode. support cStream

Returns: amount sent (maybe less than requested) = 0 = Q is full. blocked from writing for now.

Reimplemented from Gray::cStreamOutput.

Member Data Documentation

◆ m_eState

SOCKETSTATE_TYPE GrayLib::cNetSocket::m_eState

What is the state of the socket. e.g. SOCKETSTATE_Disconnected.

The documentation for this class was generated from the following files:

c:/Dennis/Source/Gray/GrayLib/include/Net/cNetSocket.h
c:/Dennis/Source/Gray/GrayLib/src/Net/cNetSocket.cpp

Public Member Functions

Static Public Member Functions

Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ cNetSocket() [1/3]

◆ cNetSocket() [2/3]

◆ cNetSocket() [3/3]

◆ ~cNetSocket()

Member Function Documentation

◆ Accept()

◆ AttachSocket()

◆ BindAddr()

◆ Close()

◆ CloseFlush()

◆ ConnectAddr()

◆ CreateBind()

◆ CreateBindFirst()

◆ CreateConnect() [1/2]

◆ CreateConnect() [2/2]

◆ CreateSocket()

◆ get_AddrPeer()

◆ get_AddrSock()

◆ get_BufferSizeRx()

◆ get_BufferSizeTx()

◆ get_HashCode()

◆ get_HSocket()

◆ get_ReadReady()

◆ GetAddrPeer()

◆ GetAddrSock()

◆ GetLastError()

◆ GetLastErrorDef()

◆ isBlockingMode()

◆ isConnected()

◆ isConnected2()

◆ isConnecting()

◆ Listen()

◆ operator=()

◆ put_Async()

◆ put_BlockingMode()

◆ put_BlockingTimeoutRx()

◆ put_BlockingTimeoutTx()

◆ put_BufferSizeRx()

◆ put_BufferSizeTx()

◆ put_KeepAlive()

◆ put_Nagle()

◆ put_ReuseAddr()

◆ ReadPeek()

◆ ReadX()

◆ ReceiveFrom()

◆ SendTo()

◆ SetStateEstablished()

◆ UNITTEST_FRIEND()

◆ WriteX()

Member Data Documentation

◆ m_eState
