Gray3D::cModelXFrame Class Reference

#include <cModelX.h>

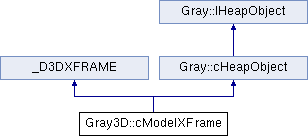

Inheritance diagram for Gray3D::cModelXFrame:
_D3DXFRAME Gray::cHeapObject Gray::IHeapObject

Public Member Functions

 DECLARE_HEAP_ALIGNED_ALLOC (cModelXFrame)

 cModelXFrame (const ATOMCHAR_t *pszFrameName)

virtual ~cModelXFrame ()

cModelXFrame * get_FrameSibling () const

cModelXFrame * get_FrameChild0 () const

cModelXMeshCont * get_MeshCont0 () const

DWORD get_MeshContFaces (bool bChildFrames, bool bSiblings) const

HRESULT GetIndexedFaceFrame (DWORD dwFaceToFind, cTriangle3f &tri, const cMatrix4x4f **ppmTransform, bool bCheckSiblings) const

DWORD ComputeFrameBoundingBox (cBounds3f &bres, bool bSibsAndChildren) const

DWORD ComputeFrameBoundingSphere (cSphereWork &bsphere, bool bSibsAndChildren) const

DWORD ComputePointCloud (const cMatrix4x4f *pParentMatrix, cArrayStruct< cVector3f > &cloud)

cModelXMeshCont * FindMeshCont (const ATOMCHAR_t *pszMeshContName, bool bSiblings) const

cModelXFrame * FindFrame (const ATOMCHAR_t *pszFrameName, bool bSiblings) const

bool GetHitTest (float &fDistHit, const cVector3f &vo, const cVector3f &vd, const cMatrix4x4f &mWorldRoot)

int CountIntersections (const cVector3f &vStart, const cVector3f &vDir, ModelX_FrameMask_t uFrameMask)

void UpdateCombinedTransformationMatrixs (const cMatrix4x4f *pParentMatrix)

ModelX_FrameMask_t UpdateChildrenFlags ()

- Public Member Functions inherited from Gray::cHeapObject
 cHeapObject ()

virtual ~cHeapObject ()

bool IsValidInsideN (INT_PTR index) const

bool IsValidInsidePtr (void const *pTest) const

virtual size_t GetHeapStatsThis (OUT ITERATE_t &iAllocCount) const

virtual bool isValidCheck () const noexcept


Public Attributes

cStringA m_sName

ModelX_FrameMask_t m_uFrameFlags
 inside, outside,... flags for meshes in this frame More...

ModelX_FrameMask_t m_uChildrenFlags
 all frame children flags concatenated. (NOT sibs) More...

cMatrix4x4f m_mCombinedTransformation
 multiply up all my parent chains matrices. how to transform into full model coords. NOT valid if animated More...

cBounds3f m_BBoxFrame
 combined model space bbox. NOT valid if animated. More...

cSpheref m_BSphereFrame
 combined model space bsphere. NOT valid if animated. More...

 CHEAPOBJECT_IMPL

- Public Attributes inherited from _D3DXFRAME
char * Name

XMFLOAT4X4 TransformationMatrix

_D3DXMESHCONTAINER * pMeshContainer

struct _D3DXFRAME * pFrameSibling

struct _D3DXFRAME * pFrameFirstChild


Additional Inherited Members

- Protected Member Functions inherited from Gray::cHeapObject
const void * get_HeapPtr () const noexcept override
 Get the top level (outermost, freeable) class pointer. I can delete get_HeapPtr(). More...


Detailed Description

A container for an array of cModelXMeshCont + child frames. Group of meshes can have a TransformationMatrix that they all share. Structure derived from D3DXFRAME so we can add some app-specific info that will be stored with each frame Private Wrapper for the exposed D3DXFRAME

Constructor & Destructor Documentation

◆ cModelXFrame()

Gray3D::cModelXFrame::cModelXFrame ( const ATOMCHAR_t *  pszFrameName)

◆ ~cModelXFrame()

Gray3D::cModelXFrame::~cModelXFrame ( )
virtual

Member Function Documentation

◆ ComputeFrameBoundingBox()

DWORD Gray3D::cModelXFrame::ComputeFrameBoundingBox ( cBounds3f &  bres,
bool  bSibsAndChildren
) const

Compute a bounding box in model space.

Note
because the bbox is post transformed the box will not be completely accurate !!
Returns
total vertices

◆ ComputeFrameBoundingSphere()

DWORD Gray3D::cModelXFrame::ComputeFrameBoundingSphere ( cSphereWork &  bsphere,
bool  bSibsAndChildren
) const

Compute a sphere in model space. like D3DXFrameCalculateBoundingSphere

Returns
total vertices

◆ ComputePointCloud()

DWORD Gray3D::cModelXFrame::ComputePointCloud ( const cMatrix4x4f *  pParentMatrix,
cArrayStruct< cVector3f > &  cloud
)

add all the transformed points to the point cloud (children + sibs) eqiv of ComputeFrameBoundingSphere() ??

Returns
Total number of faces. <0 = error

◆ CountIntersections()

int Gray3D::cModelXFrame::CountIntersections ( const cVector3f &  vStart,
const cVector3f &  vDir,
ModelX_FrameMask_t  uFrameMask
)

◆ DECLARE_HEAP_ALIGNED_ALLOC()

Gray3D::cModelXFrame::DECLARE_HEAP_ALIGNED_ALLOC ( cModelXFrame  )

◆ FindFrame()

cModelXFrame * Gray3D::cModelXFrame::FindFrame ( const ATOMCHAR_t *  pszFrameName,
bool  bSiblings
) const

◆ FindMeshCont()

cModelXMeshCont * Gray3D::cModelXFrame::FindMeshCont ( const ATOMCHAR_t *  pszMeshContName,
bool  bSiblings
) const

◆ get_FrameChild0()

cModelXFrame* Gray3D::cModelXFrame::get_FrameChild0 ( ) const
inline

First frame child in a possible list. _D3DXFRAME

◆ get_FrameSibling()

cModelXFrame* Gray3D::cModelXFrame::get_FrameSibling ( ) const
inline

Next frame in a list. _D3DXFRAME

◆ get_MeshCont0()

cModelXMeshCont* Gray3D::cModelXFrame::get_MeshCont0 ( ) const
inline

Get first mesh in a possible list. _D3DXFRAME

◆ get_MeshContFaces()

DWORD Gray3D::cModelXFrame::get_MeshContFaces ( bool  bChildFrames,
bool  bSiblings
) const

◆ GetHitTest()

bool Gray3D::cModelXFrame::GetHitTest ( float &  fDistHit,
const cVector3f &  vo,
const cVector3f &  vd,
const cMatrix4x4f &  mWorldRoot
)

◆ GetIndexedFaceFrame()

HRESULT Gray3D::cModelXFrame::GetIndexedFaceFrame ( DWORD  dwFaceToFind,
cTriangle3f &  tri,
const cMatrix4x4f **  ppmTransform,
bool  bCheckSiblings
) const

◆ UpdateChildrenFlags()

ModelX_FrameMask_t Gray3D::cModelXFrame::UpdateChildrenFlags ( )

◆ UpdateCombinedTransformationMatrixs()

void Gray3D::cModelXFrame::UpdateCombinedTransformationMatrixs ( const cMatrix4x4f *  pParentMatrix)

Member Data Documentation

◆ CHEAPOBJECT_IMPL

Gray3D::cModelXFrame::CHEAPOBJECT_IMPL

◆ m_BBoxFrame

cBounds3f Gray3D::cModelXFrame::m_BBoxFrame

combined model space bbox. NOT valid if animated.

◆ m_BSphereFrame

cSpheref Gray3D::cModelXFrame::m_BSphereFrame

combined model space bsphere. NOT valid if animated.

◆ m_mCombinedTransformation

cMatrix4x4f Gray3D::cModelXFrame::m_mCombinedTransformation

multiply up all my parent chains matrices. how to transform into full model coords. NOT valid if animated

◆ m_sName

cStringA Gray3D::cModelXFrame::m_sName

◆ m_uChildrenFlags

ModelX_FrameMask_t Gray3D::cModelXFrame::m_uChildrenFlags

all frame children flags concatenated. (NOT sibs)

◆ m_uFrameFlags

ModelX_FrameMask_t Gray3D::cModelXFrame::m_uFrameFlags

inside, outside,... flags for meshes in this frame

The documentation for this class was generated from the following files:
