#include <cNetServer.h>

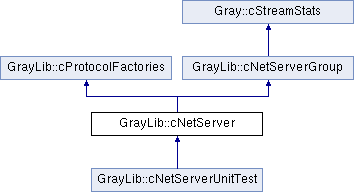

Inheritance diagram for GrayLib::cNetServer:

Public Member Functions
	cNetServer (const char *pszName="NetServer", bool bAsyncEvents=false)

virtual	~cNetServer ()

const char *	get_ServerName () const noexcept

ITERATE_t	get_ConnectionQty () const noexcept

HRESULT	AddListenPort (cNetServerPort *pServerPort)

HRESULT	AddListenPort (const cNetAddress &SockAddr)

HRESULT	AddListenPort2 (const cNetAddress &SockAddr, OUT cNetServerPortPtr *ppServerPort=nullptr)

bool	RemoveListenPort (cNetServerPort *pServerPort)

ITERATE_t	get_ListenPortQty () const noexcept

cNetServerPortPtr	EnumListenPort (ITERATE_t i) const

HRESULT	CreateServerStream (const cNetAddress &addr, IProtocolFactory &pf, cNetServerConnectionPtr &rpStream)

virtual HRESULT	CheckAddressBeforeAccept (const cNetAddress &Addr) const

bool	InitServer ()

void	CloseServer ()

virtual void	OnTickClients () override

void	OnTickServer (TIMESYSD_t tWaitMax=0)

	UNITTEST_FRIEND (cNetServer)

Public Member Functions inherited from GrayLib::cProtocolFactories
bool	AddProtocol (IProtocolFactory *pProtocolFactory)

HRESULT	TestProtocol (const BYTE pPrefixData, size_t iPrefixLen, OUT IProtocolFactory &rpProtocolFactory) const

Public Member Functions inherited from GrayLib::cNetServerGroup
	cNetServerGroup (cNetServer &server)

virtual	~cNetServerGroup ()

const char *	get_ServerName () const

ITERATE_t	get_ClientQty () const

bool	RemoveClient (cNetServerConnection *pClient)

void	MoveClientToGroup (cNetServerConnection *pClient)

void	MoveClientToClose (cNetServerConnection *pClient)

Public Member Functions inherited from Gray::cStreamStats
void	Add (const cStreamStats &n)

Public Attributes
const char *	m_pszServerName
	Server type name. (not host name) More...

const bool	m_bAsyncEvents
	_WIN32 only. use async callbacks. More...

int	m_nMaxConnections
	total allowed incoming connections. More...

int	m_nMaxPerAddr
	max connections per host/address. More...

int	m_nMaxPerAddrUnresolved
	max unresolved protocol connections per host/address. More...

Public Attributes inherited from GrayLib::cNetServerGroup
cNetServer &	m_server
	My top level cNetServer owner/parent. More...

cValueStatsRate< float >	m_TickLatency
	How long did the last OnTickSelect and OnTickClients take ? TIMESYS_t. More...

Public Attributes inherited from Gray::cStreamStats
cStreamStat	m_StatOut

cStreamStat	m_StatInp

Protected Member Functions
void	OnClientCloseComplete ()

HRESULT	TestProtocolClient (cNetServerConnection *pClient)

HRESULT	OnEventAccept (cNetServerPort *pListenPort, LSTATUS wError)

HRESULT	OnClientConnect (cNetServerConnection *pClient)

virtual HRESULT	OnClientReady (cNetServerConnection *pClient)

virtual void	OnClientClose (cNetServerConnection *pClient)

virtual HRESULT	OnClientRead (cNetServerConnection *pClient) override

Protected Member Functions inherited from GrayLib::cNetServerGroup
HRESULT	OnClientWrite (cNetServerConnection *pClient)

HRESULT	OnTickSelect (TIMESYSD_t tWaitMax, cNetSocketSet &readfds, cNetSocketSet &writefds)

Protected Attributes
cNetSystemPtr	m_NetSystem
	I use the network. More...

cArrayRef< cNetServerThread >	m_aThreads
	Alternate threads used to process clients. More...

cArraySortHash< cNetServerConnection >	m_aConnecting
	My Outgoing connections. From this server to some place. More...

cThreadLockArrayHash< cNetServerConnection >	m_aClosing
	Call OnClientClose these connections. More...

cArraySortHash< cNetServerPort >	m_aListenPorts
	The server SOCKET(s) we are currently listening on. 1 for each port. More...

Protected Attributes inherited from GrayLib::cProtocolFactories
cArrayPtr< IProtocolFactory >	m_aProtocols
	array of possible protocols we support. More...

Protected Attributes inherited from GrayLib::cNetServerGroup
cThreadLockArrayHash< cNetServerConnection >	m_aConnections
	Collection of active clients. sorted by socket id. More...

Friends
class	cNetServerGroup

Detailed Description

A generic TCP Internet server for things based on cProtocol. Accept incoming TCP connections and manage them. Can act as a polled server or just waits for incoming connections.

Note: Use cUPnPNAT to expose ports outside the local firewall.; Use cNetAddrTracker/cNetAddrMgr to track DoS/password/etc attacks.

Todo:: support UDP based protocols.

Constructor & Destructor Documentation

◆ cNetServer()

GrayLib::cNetServer::cNetServer	(	const char *	pszName = `"NetServer"`,
		bool	bAsyncEvents = `false`
	)

◆ ~cNetServer()

GrayLib::cNetServer::~cNetServer ( )

virtual

Member Function Documentation

◆ AddListenPort() [1/2]

HRESULT GrayLib::cNetServer::AddListenPort ( cNetServerPort * pServerPort )

Monitor/listen on this new local socket address/port.

Returns: The index for the listen socket. <0 = error.

◆ AddListenPort() [2/2]

HRESULT GrayLib::cNetServer::AddListenPort ( const cNetAddress & SockAddr )

Monitor/listen on this new local socket address/port.

Returns: The index for the listen socket. <0 = error.

◆ AddListenPort2()

HRESULT GrayLib::cNetServer::AddListenPort2	(	const cNetAddress &	SockAddr,
		OUT cNetServerPortPtr *	ppServerPort = `nullptr`
	)

Monitor/listen on this new local socket address/port.

Returns: <0 = failed to get a port. e.g. No permissions to open low ports?

◆ CheckAddressBeforeAccept()

HRESULT GrayLib::cNetServer::CheckAddressBeforeAccept ( const cNetAddress & Addr ) const

virtual

Is the address on my blocked list ? override to use cNetAddrMgr/cNetAddrTracker Different clients behind a NAT IP host router can all look like the same address to me. just different ports. Does this host address have other unresolved connections? (only c_MaxUnresolvedPerAddr allowed at a time) Prevent DoS attacks.

◆ CloseServer()

void GrayLib::cNetServer::CloseServer ( )

server is going away.

Note: this is only called on the server thread.

remove server SOCKET(s) we are currently listening on. 1 for each port.

◆ CreateServerStream()

HRESULT GrayLib::cNetServer::CreateServerStream	(	const cNetAddress &	addr,
		IProtocolFactory &	pf,
		cNetServerConnectionPtr &	rpStream
	)

Create an outgoing stream/protocol connection. Weird behavior for a server. But treat it like any other server connection. e.g. FTP server does outgoing connect for NOT PASV data connection.

◆ EnumListenPort()

cNetServerPortPtr GrayLib::cNetServer::EnumListenPort ( ITERATE_t i ) const

inline

◆ get_ConnectionQty()

ITERATE_t GrayLib::cNetServer::get_ConnectionQty ( ) const

inlinenoexcept

Sum of all ports I must poll.

◆ get_ListenPortQty()

ITERATE_t GrayLib::cNetServer::get_ListenPortQty ( ) const

inlinenoexcept

How many ports/sockets am i listening to ?

◆ get_ServerName()

const char* GrayLib::cNetServer::get_ServerName ( ) const

inlinenoexcept

◆ InitServer()

bool GrayLib::cNetServer::InitServer ( )

Make sure the server has connected to the network.

◆ OnClientClose()

void GrayLib::cNetServer::OnClientClose ( cNetServerConnection * pClient )

protectedvirtual

The socket has disconnected so clean it up. a remote disconnect or graceful disconnect. Assume debug message already posted.

Note: Called on server thread only.

◆ OnClientCloseComplete()

void GrayLib::cNetServer::OnClientCloseComplete ( )

protected

call OnClientClose all the clients that are m_aClosing.

Note: this is only called on the server thread.

◆ OnClientConnect()

HRESULT GrayLib::cNetServer::OnClientConnect ( cNetServerConnection * pClient )

protected

Outgoing (non blocking) connection is now connected. FD_CONNECT Failure to complete connection just calls OnClientClose

◆ OnClientRead()

HRESULT GrayLib::cNetServer::OnClientRead ( cNetServerConnection * pClient )

overrideprotectedvirtual

Data is ready for read on a client connection. FD_READ

Returns: <0 = HRESULT HRESULT_WIN32_C(ERROR_IO_INCOMPLETE) Number of bytes received.

Reimplemented from GrayLib::cNetServerGroup.

◆ OnClientReady()

HRESULT GrayLib::cNetServer::OnClientReady ( cNetServerConnection * pClient )

protectedvirtual

The connections/clients m_pProtocol has been resolved and/or connected. override this to reject protocols on certain addresses/protocol combos ?

Returns: HRESULT_WIN32_C(ERROR_IO_INCOMPLETE) = need more. Incomplete packet.

◆ OnEventAccept()

HRESULT GrayLib::cNetServer::OnEventAccept	(	cNetServerPort *	pListenPort,
		LSTATUS	wError
	)

protected

The system says a new connection is incoming via ::select() or asynchronous FD_ACCEPT message. Accept incoming connection and find out more about this connection.

pListenPort=the port the new connection is coming in on.
Note
Windows has a better mechanism for filtering bad source hosts earlier/cheaper. AsyncAccept call CheckAddressBeforeAccept.

Returns
HRESULT. HRESULT_WIN32_C(ERROR_IO_INCOMPLETE)

◆ OnTickClients()

void GrayLib::cNetServer::OnTickClients ( )

overridevirtual

OnTick + Final cleanup of closed clients.

Reimplemented from GrayLib::cNetServerGroup.

◆ OnTickServer()

void GrayLib::cNetServer::OnTickServer ( TIMESYSD_t tWaitMax = 0 )

Poll of listen sockets and process data from clients.

tWaitMax = mSec to wait for new data.
Note
Don't call OnTickStream() or OnTickSelect() if using OnEvent() asynchronous callbacks.

◆ RemoveListenPort()

bool GrayLib::cNetServer::RemoveListenPort ( cNetServerPort * pServerPort )

When a particular listen socket is no longer needed. remove it.

◆ TestProtocolClient()

HRESULT GrayLib::cNetServer::TestProtocolClient ( cNetServerConnection * pClient )

protected

We just got data for this new incoming client. Try to resolve its protocol.

Note: we even call this with no data on first connection. allow non prefix dedicated port protocols. (e.g.telnet)

Returns: HRESULT_WIN32_C(ERROR_IO_INCOMPLETE) = need more. Incomplete packet. not enough data to determine protocol yet. S_OK = got it.

◆ UNITTEST_FRIEND()

GrayLib::cNetServer::UNITTEST_FRIEND ( cNetServer )

Friends And Related Function Documentation

◆ cNetServerGroup

friend class cNetServerGroup

friend

Member Data Documentation

◆ m_aClosing

cThreadLockArrayHash<cNetServerConnection> GrayLib::cNetServer::m_aClosing

protected

Call OnClientClose these connections.

◆ m_aConnecting

cArraySortHash<cNetServerConnection> GrayLib::cNetServer::m_aConnecting

protected

My Outgoing connections. From this server to some place.

◆ m_aListenPorts

cArraySortHash<cNetServerPort> GrayLib::cNetServer::m_aListenPorts

protected

The server SOCKET(s) we are currently listening on. 1 for each port.

◆ m_aThreads

cArrayRef<cNetServerThread> GrayLib::cNetServer::m_aThreads

protected

Alternate threads used to process clients.

◆ m_bAsyncEvents

const bool GrayLib::cNetServer::m_bAsyncEvents

_WIN32 only. use async callbacks.

◆ m_NetSystem

cNetSystemPtr GrayLib::cNetServer::m_NetSystem

protected

I use the network.

◆ m_nMaxConnections

int GrayLib::cNetServer::m_nMaxConnections

total allowed incoming connections.

◆ m_nMaxPerAddr

int GrayLib::cNetServer::m_nMaxPerAddr

max connections per host/address.

◆ m_nMaxPerAddrUnresolved

int GrayLib::cNetServer::m_nMaxPerAddrUnresolved

max unresolved protocol connections per host/address.

◆ m_pszServerName

const char* GrayLib::cNetServer::m_pszServerName

Server type name. (not host name)

The documentation for this class was generated from the following files:

c:/Dennis/Source/Gray/GrayLib/include/Net/cNetServer.h
c:/Dennis/Source/Gray/GrayLib/src/Net/cNetServer.cpp
