GrayLib::cNetServerConnection Class Reference

#include <cNetServer.h>

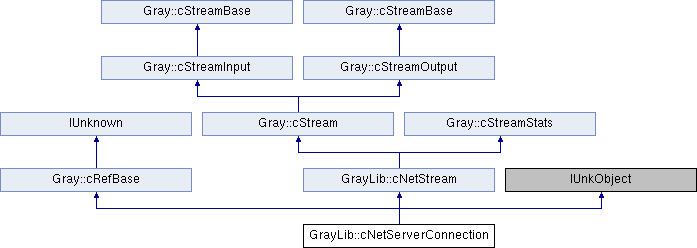

Inheritance diagram for GrayLib::cNetServerConnection:

Public Member Functions
	cNetServerConnection (cNetServerGroup *pServerGroup, cNetServerPort *pListenPort, SOCKET hSocket, const cNetAddress &addrPeer, cProtocolStream *pProtocol=nullptr)
virtual	~cNetServerConnection ()
const char *	get_ServerName () const
HASHCODE_t	get_HashCode () const noexcept
	STDMETHOD_ (HASHCODE_t, get_HashCodeX)() const noexcept override
	STDMETHOD_ (cString, get_Name)() const override
	STDMETHOD_ (cStringA, get_SymName)() const
HRESULT	ProcessStreamInp ()
virtual HRESULT	onEventRead () override
	FD_WRITE similar to MFC OnReceive. More...
virtual HRESULT	OnTickStream ()
virtual void	Close () override
	IUNKNOWN_DISAMBIG (cRefBase)
Public Member Functions inherited from Gray::cRefBase
	cRefBase (int iRefCount=0) noexcept
virtual	~cRefBase ()
int	get_RefCount () const noexcept
HASHCODE_t	get_HashCode () const noexcept
	STDMETHOD_ (HASHCODE_t, get_HashCodeX)() const noexcept
virtual void	onFinalRelease ()
bool	isValidObj () const noexcept
	STDMETHOD_ (ULONG, AddRef)(void) override
	STDMETHOD_ (ULONG, Release)(void) override
STDMETHOD()	QueryInterface (const IID &riid, void __RPC_FAR *__RPC_FAR *ppvObject) override
void	IncRefCount ()
void	DecRefCount ()
bool	isStaticConstruct () const noexcept
void	StaticConstruct ()
void	StaticDestruct ()
bool	isDestructing () noexcept
void	SetDestructing ()
Public Member Functions inherited from GrayLib::cNetStream
	cNetStream (SOCKET hSocket=INVALID_SOCKET, bool bAsync=false, size_t nRxBufferLimit=(cStream::k_FILE_BLOCK_SIZE/2))
virtual	~cNetStream (void)
bool	isConnected () const
bool	isConnecting () const noexcept
bool	isValidSocket () const noexcept
HASHCODE_t	get_HashCode () const noexcept
bool	isInputDesired () const
bool	isInputEmpty () const
bool	isOutputEmpty () const
ITERATE_t	get_InputQty () const
ITERATE_t	get_OutputQty () const
virtual HRESULT	onEventWrite ()
	override these if we want to know if data is ready to TX or RX More...
HRESULT	UpdateQWrite ()
HRESULT	UpdateQRead ()
cStreamOutput *	get_StreamOut ()
cStreamInput *	get_StreamInp ()
virtual HRESULT	WriteX (const void *pData, size_t nDataSize) override
virtual HRESULT	ReadX (void *pData, size_t nDataSize) override
virtual size_t	SetSeekSizeMin (size_t nSizeMin=k_FILE_BLOCK_SIZE) override
virtual STREAM_SEEKRET_t	Seek (STREAM_OFFSET_t iOffset, SEEK_ORIGIN_TYPE eSeekOrigin) override
	Disambiguate Seek for cStreamBase to cStreamInput for stupid compiler. More...
void	SetStateEstablished ()
	UNITTEST_FRIEND (cNetStream)
Public Member Functions inherited from Gray::cStream
virtual STREAM_POS_t	GetPosition () const override
virtual STREAM_POS_t	GetLength () const override
void	SeekToBegin ()
STREAM_POS_t	SeekToEnd ()
Public Member Functions inherited from Gray::cStreamInput
	cStreamInput () noexcept
virtual	~cStreamInput ()
virtual HRESULT	ReadX (OUT void *pData, size_t nDataSize)
HRESULT	ReadAll (OUT cHeapBlock &block, size_t nSizeExtra=0)
virtual HRESULT	ReadStringLine (OUT char *pszBuffer, StrLen_t iSizeMax)
virtual HRESULT	ReadStringLine (OUT wchar_t *pszBuffer, StrLen_t iSizeMax)
HRESULT	ReadT (OUT void *pVal, size_t nSize)
template<typename TYPE >
HRESULT	ReadT (OUT TYPE &val)
template<typename TYPE >
HRESULT	ReadTN (OUT TYPE &val)
HRESULT	ReadSize (OUT size_t &nSize)
template<typename TYPE >
HRESULT	ReadSizeT (OUT TYPE &n)
HRESULT	ReadHashCode (OUT UINT32 &nHashCode)
HRESULT	ReadHashCode (OUT UINT64 &nHashCode)
HRESULT	ReadN (OUT BYTE *pBuffer, size_t nSizeMax)
template<typename _CH >
HRESULT	ReadStringN (OUT _CH *pszStr, StrLen_t iSizeMax)
virtual HRESULT	ReadPeek (void *pData, size_t nDataSize)
Public Member Functions inherited from Gray::cStreamBase
virtual	~cStreamBase ()
void	SeekToBegin ()
STREAM_POS_t	SeekToEnd ()
Public Member Functions inherited from Gray::cStreamOutput
	cStreamOutput () noexcept
virtual	~cStreamOutput ()
HRESULT	WriteT (const void *pVal, size_t nDataSize)
template<typename TYPE >
HRESULT	WriteT (TYPE val)
HRESULT	WriteSize (size_t nSize)
HRESULT	WriteHashCode (HASHCODE_t nHashCode)
HRESULT	WriteN (const void *pBuffer, size_t nSize)
template<typename _CH >
HRESULT	WriteStringN (const _CH *pszStr)
template<typename _CH >
HRESULT	WriteCharRepeat (_CH nChar, int nCount=1)
virtual HRESULT	WriteString (const char *pszStr)
virtual HRESULT	WriteString (const wchar_t *pszStr)
StrLen_t	VPrintf (const char *pszFormat, va_list args)
StrLen_t	VPrintf (const wchar_t *pszFormat, va_list args)
StrLen_t _cdecl	Printf (const char *pszFormat,...)
StrLen_t _cdecl	Printf (const wchar_t *pszFormat,...)
HRESULT	WriteStream (cStreamInput &sInp, STREAM_POS_t nSizeMax=k_FILE_BLOCK_SIZE, IStreamProgressCallback *pProgress=nullptr, TIMESYSD_t nTimeout=0)
	Copy cStreamInput to this stream. More...
virtual HRESULT	FlushX ()
Public Member Functions inherited from Gray::cStreamStats
void	Add (const cStreamStats &n)

Public Attributes
cNetServerGroup *	m_pServerGroup
	Assigned to this group/thread for processing. More...
cNetServerPortPtr	m_pListenPort
	the server port i connected on. (if incoming connection, nullptr if outgoing connection)(used to resolve protocol) More...
const cNetAddress	m_addrPeer
	The peer (source/remote) connection address. if i care. More...
cProtocolStreamPtr	m_pProtocol
	resolved to talk this protocol. nullptr = protocol not resolved yet. More...
Public Attributes inherited from GrayLib::cNetStream
cNetSocket	m_Socket
	the raw TCP SOCKET we are buffering to/from. More...
bool	m_bAsync
	Will this socket be using OnEvent FD_READ FD_WRITE events ? More...
bool	m_bInpThrottled
	The m_bAsync input was throttled. we cant rely on m_bAsync OnEvent to notify us again. we must poll. More...
cStreamQueue	m_bout
	raw output buffer to m_Socket. can write to this externally if m_bAsync. More...
cStreamQueue	m_binp
	raw input buffer from m_Socket. can read from this externally if m_bAsync. More...
HRESULT	m_hResultRx
	The status of the connect or disconnect. S_OK = connected. else how to it close ? don't return this until we read all the m_binp data. More...
Public Attributes inherited from Gray::cStreamStats
cStreamStat	m_StatOut
cStreamStat	m_StatInp

Additional Inherited Members
Static Public Attributes inherited from Gray::cStreamBase
static const BYTE	k_SIZE_MASK = 0x80
	Used for WriteSize() More...
static const size_t	k_FILE_BLOCK_SIZE = (32 * 1024)
	default arbitrary transfer block size. more than this is NOT more efficient. More...

Detailed Description

a single client/connection/socket to the cNetServer. Raw Stream. used as opaque holder class for a cProtocolStream for the server. connected via cNetStream/cNetSocket

Note

Isolates cProtocolStream from cNetSocket/cNetStream. e.g. pProtocol = cHttpProtocolStream

Constructor & Destructor Documentation

cNetServerConnection()

GrayLib::cNetServerConnection::cNetServerConnection	(	cNetServerGroup *	pServerGroup,
		cNetServerPort *	pListenPort,
		SOCKET	hSocket,
		const cNetAddress &	addrPeer,
		cProtocolStream *	pProtocol = nullptr
	)

~cNetServerConnection()

GrayLib::cNetServerConnection::~cNetServerConnection ( )

virtual

Member Function Documentation

Close()

void GrayLib::cNetServerConnection::Close ( )

overridevirtual

Tell the protocol it is closing.

Note

can't clear m_pProtocol until OnClientClose() called from cNetServer thread only.

Reimplemented from GrayLib::cNetStream.

get_HashCode()

HASHCODE_t GrayLib::cNetServerConnection::get_HashCode ( ) const

inlinenoexcept

Use the socket id as a unique id for this stream.

get_ServerName()

const char * GrayLib::cNetServerConnection::get_ServerName

(

)

const

IUNKNOWN_DISAMBIG()

GrayLib::cNetServerConnection::IUNKNOWN_DISAMBIG

(

cRefBase

)

onEventRead()

HRESULT GrayLib::cNetServerConnection::onEventRead ( )

overridevirtual

FD_WRITE similar to MFC OnReceive.

Override cNetStream Check socket for new data.

Returns

0 = nothing here. <0 = error number of bytes size new data;

Event FD_READ or polled frequently. Read and queue up any data that is available.

Note

default read high water limit = cStream::k_FILE_BLOCK_SIZE/2

Returns

0 = nothing here. <0 = error. HRESULT_WIN32_C(WSAECONNABORTED), HRESULT_WIN32_C(ERROR_DEVICE_NOT_CONNECTED) Number of bytes size new data;

Reimplemented from GrayLib::cNetStream.

OnTickStream()

HRESULT GrayLib::cNetServerConnection::OnTickStream ( )

virtual

Send a tick along to the protocol so it can do things periodically. like timeout.

ProcessStreamInp()

HRESULT GrayLib::cNetServerConnection::ProcessStreamInp

(

)

Called periodically to process queued incoming data. if any. If this is a resolved m_pProtocol, process all the input data.

Returns

HRESULT. HRESULT_WIN32_C(ERROR_IO_INCOMPLETE) = need more.

STDMETHOD_() [1/3]

GrayLib::cNetServerConnection::STDMETHOD_ ( cString  , get_Name    ) const

override

STDMETHOD_() [2/3]

GrayLib::cNetServerConnection::STDMETHOD_ ( cStringA  , get_SymName    ) const

inline

STDMETHOD_() [3/3]

GrayLib::cNetServerConnection::STDMETHOD_ ( HASHCODE_t  , get_HashCodeX    ) const

inlineoverridenoexcept

Virtualized version of get_HashCode for IUnkObject

Member Data Documentation

m_addrPeer

const cNetAddress GrayLib::cNetServerConnection::m_addrPeer

The peer (source/remote) connection address. if i care.

m_pListenPort

cNetServerPortPtr GrayLib::cNetServerConnection::m_pListenPort

the server port i connected on. (if incoming connection, nullptr if outgoing connection)(used to resolve protocol)

m_pProtocol

cProtocolStreamPtr GrayLib::cNetServerConnection::m_pProtocol

resolved to talk this protocol. nullptr = protocol not resolved yet.

m_pServerGroup

cNetServerGroup* GrayLib::cNetServerConnection::m_pServerGroup

Assigned to this group/thread for processing.

---

The documentation for this class was generated from the following files:

• c:/Dennis/Source/Gray/GrayLib/include/Net/cNetServer.h
• c:/Dennis/Source/Gray/GrayLib/src/Net/cNetServer.cpp
