#include <cXmlDocument.h>

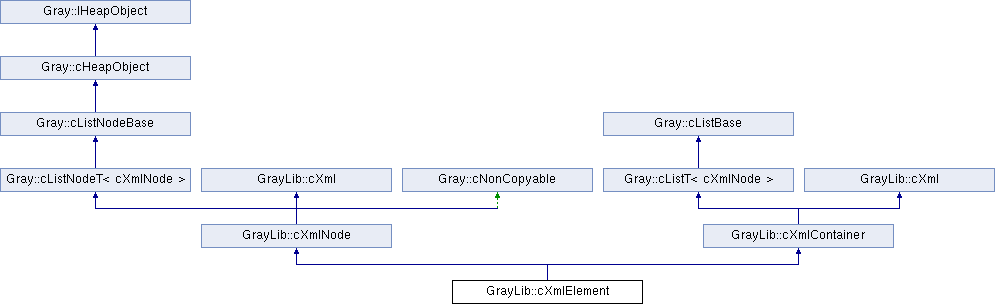

Inheritance diagram for GrayLib::cXmlElement:

Public Member Functions
	cXmlElement (cXmlString sValue)

	cXmlElement (const cXmlElement &rCopy)

virtual	~cXmlElement ()

void	operator= (const cXmlElement &rCopy)

const char *	get_Text () const

virtual cXmlNode *	Clone () const
	Creates a new Element and returns it - the returned element is a copy. More...

virtual HRESULT	SetParseNode (cXmlReader &rReader)

virtual HRESULT	Print (cStreamOutput &rOut, int nDepth=0) const
	Print the Element to a cStreamOutput stream. More...

virtual bool	OnVisit (IXmlVisitor *visitor) const
	Walk the XML tree visiting this node and all of its children. More...

virtual cXmlContainer *	ToContainer ()

virtual cXmlNode *	ToNode ()
	cast cXmlContainer is a cXmlDocument or cXmlElement More...

virtual cXmlElement *	ToElement ()

virtual const cXmlElement *	ToElement () const

Public Member Functions inherited from GrayLib::cXmlNode
virtual	~cXmlNode ()

XMLNODE_TYPE	get_Type () const

bool	isType (XMLNODE_TYPE eType) const

void	put_UserData (void *pUserData)

void *	get_UserData () const

void	put_Value (cXmlString sValue)

const cXmlString &	get_Value () const

HRESULT	QueryValueInt (int *piValue) const

HRESULT	QueryValueDouble (double *pdValue) const
	QueryValueDouble examines the value string. See QueryValueInt(). More...

int	get_ValueInt () const
	Return the value of this attribute, converted to an integer. More...

double	get_ValueDouble () const
	Return the value of this attribute, converted to a double. More...

void	put_ValueInt (int iValue)
	Set the value from an integer. More...

void	put_ValueDouble (double dValue)
	Set the value from a double. More...

cXmlDocument *	get_Document () const

cXmlNode *	GetPreviousSibling (const char *pszValue) const
	Navigate to a sibling node. More...

cXmlNode *	GetNextSiblingX (const char *pszValue) const
	Navigate to a sibling node with the given 'value'. More...

cXmlElement *	get_NextSiblingElement () const

cXmlElement *	GetNextSiblingElement (const char *pszValue) const

HRESULT	SetParse (const char *pszData, CXML_ENCODING_TYPE eEncoding=CXML_ENCODING_UNKNOWN)

ITERATE_t	get_Row () const

StrLen_t	get_Column () const

Public Member Functions inherited from Gray::cListNodeT< cXmlNode >
cXmlNode *	get_Next () const

cXmlNode *	get_Prev () const

Public Member Functions inherited from Gray::cListNodeBase
virtual	~cListNodeBase ()

cListBase *	get_Parent () const noexcept

cListNodeBase *	get_Next () const noexcept

cListNodeBase *	get_Prev () const noexcept

bool	hasParent () const noexcept

void	RemoveFromParent ()

virtual HRESULT	DisposeThis ()

Public Member Functions inherited from Gray::cHeapObject
	cHeapObject ()

virtual	~cHeapObject ()

bool	IsValidInsideN (INT_PTR index) const

bool	IsValidInsidePtr (void const *pTest) const

virtual size_t	GetHeapStatsThis (OUT ITERATE_t &iAllocCount) const

virtual bool	isValidCheck () const noexcept

Public Member Functions inherited from GrayLib::cXmlContainer
virtual	~cXmlContainer ()

cXmlNode *	GetChildFirst (const char *value) const
	The first child of this node with the matching 'value'. Will be null if none found. More...

cXmlNode *	GetChildLast (const char *value) const
	The last child of this node matching 'value'. Will be null if there are no children. More...

cXmlNode *	IterateChildren (const char value, const cXmlNode previous) const
	This flavor of IterateChildren searches for children with a particular 'value'. More...

HRESULT	LinkChildEnd (cXmlNode *addThis)

void	SetCopyChildren (const cXmlContainer &cont)

cXmlNode *	InsertChildEnd (const cXmlNode &addThis)

cXmlNode *	InsertChildAfter (cXmlNode *afterThis, const cXmlNode &addThis)

cXmlNode *	InsertChildBefore (cXmlNode *beforeThis, const cXmlNode &addThis)

bool	RemoveChild (cXmlNode *removeThis)
	Delete a child of this node. More...

cXmlElement *	get_FirstChildElement () const
	Convenience function to get through elements. More...

cXmlElement *	GetFirstChildElement (const char *pszValue) const
	Convenience function to get through elements. More...

Public Member Functions inherited from Gray::cListT< cXmlNode >
cXmlNode *	GetAt (ITERATE_t index) const

cXmlNode *	get_Head () const

cXmlNode *	get_Tail () const

Public Member Functions inherited from Gray::cListBase
	cListBase () noexcept

virtual	~cListBase ()

virtual void	InsertListNode (cListNodeBase pNodeNew, cListNodeBase pNodePrev=nullptr)

void	InsertList (cListBase pListSrc, cListNodeBase pNodePrev=nullptr)

void	InsertBefore (cListNodeBase pNodeNew, const cListNodeBase pNodeNext)

void	InsertHead (cListNodeBase *pNodeNew)

void	InsertTail (cListNodeBase *pNodeNew)

void	DisposeAll ()

void	Empty ()

cListNodeBase *	get_Head (void) const noexcept

cListNodeBase *	get_Tail (void) const noexcept

ITERATE_t	get_Count () const noexcept

bool	isEmpty () const noexcept

cListNodeBase *	GetAt (ITERATE_t index) const
	iterate the linked list. More...

bool	IsMyChild (const cListNodeBase *pNode) const noexcept

Public Attributes
cXmlAttributeSet	m_Attributes

Public Attributes inherited from GrayLib::cXmlNode
cTextPos	m_Pos
	Where (line,col) in the parsed XML document is this node? m_PosNode. More...

Protected Member Functions
virtual void	SetCopy (const cXmlElement &n)
	My set of attributes. More...

virtual void	SetClear ()
	Delete all the children of this node. Does not affect 'this'. More...

Protected Member Functions inherited from GrayLib::cXmlNode
	cXmlNode (XMLNODE_TYPE eNodeType, cXmlString sValue="")
	Only instantiate as a derived type. More...

virtual void	SetCopy (const cXmlNode &n)

Protected Member Functions inherited from Gray::cListNodeBase
virtual void	put_Parent (cListBase *pParent)

	cListNodeBase () noexcept

Protected Member Functions inherited from Gray::cHeapObject
const void *	get_HeapPtr () const noexcept override
	Get the top level (outermost, freeable) class pointer. I can delete get_HeapPtr(). More...

Protected Member Functions inherited from Gray::cNonCopyable
	cNonCopyable () noexcept
	Force the use of Factory creation via protected constructor. More...

	~cNonCopyable () noexcept

Protected Member Functions inherited from Gray::cListBase
virtual void	RemoveListNode (cListNodeBase *pNode)
	allow Override of this. called when child pObRec removed from list. More...

Additional Inherited Members
Public Types inherited from GrayLib::cXml
enum	XMLNODE_TYPE { XMLNODE_QTY }

Static Public Member Functions inherited from GrayLib::cXmlNode
static HRESULT	PrintDepth (cStreamOutput &rOut, int nDepth)

Static Public Member Functions inherited from GrayLib::cXml
static StrLen_t GRAYCALL	ParseMicrosoftBOM (const BYTE *pszData)

static bool GRAYCALL	IsXML (const IniChar_t *pszStr, StrLen_t iLenMax=StrT::k_LEN_MAX)

static cXmlString GRAYCALL	GetAttributeStr (const IniChar_t *pszName, const cXmlString &sValue)

static void	AddPathElement (cXmlString &sPath, const cXmlString &sElement)

static void	RemovePathElement (cXmlString &sPath, const cXmlString &sElement)

Static Public Attributes inherited from GrayLib::cXml
static const char	k_xmlHeader [6] = "<?xml"
	"<?xml" // not case sensitive ! More...

static const char	k_xmlEnd [3] = "?>"
	"?>" More...

static const char	k_commentHeader [5] = "<!--"
	"<!--" // comments are not reentrant! More...

static const char	k_commentEnd [4] = "-->"
	"-->" More...

static const char	k_cdataHeader [10] = "<![CDATA["
	"<![CDATA[" More...

static const char	k_cdataEnd [4] = "]]>"
	"]]>" More...

static const char	k_dtdHeader [3] = "<!"
	"<!" More...

Protected Attributes inherited from GrayLib::cXmlNode
const XMLNODE_TYPE	m_eNodeType

cXmlString	m_sValue
	parent usage dependent m_eNodeType. More...

void *	m_pUserData
	Field containing a generic pointer to arbitrary user data. More...

Protected Attributes inherited from Gray::cListBase
ITERATE_t	m_iCount
	how many children? nice to get read only direct access to this for scripting. More...

Detailed Description

The XMLNODE_Element is a container class. It has a value, the element name, and can contain other elements, text, comments, and unknowns. Elements also contain an arbitrary number of attributes.

Constructor & Destructor Documentation

◆ cXmlElement() [1/2]

GrayLib::cXmlElement::cXmlElement ( cXmlString sValue )

◆ cXmlElement() [2/2]

GrayLib::cXmlElement::cXmlElement ( const cXmlElement & rCopy )

◆ ~cXmlElement()

GrayLib::cXmlElement::~cXmlElement ( )

virtual

Member Function Documentation

◆ Clone()

cXmlNode * GrayLib::cXmlElement::Clone ( ) const

virtual

Creates a new Element and returns it - the returned element is a copy.

Implements GrayLib::cXmlNode.

◆ get_Text()

const char * GrayLib::cXmlElement::get_Text ( void ) const

get just the first text block.

◆ OnVisit()

bool GrayLib::cXmlElement::OnVisit ( IXmlVisitor * visitor ) const

virtual

Walk the XML tree visiting this node and all of its children.

Implements GrayLib::cXmlNode.

◆ operator=()

void GrayLib::cXmlElement::operator= ( const cXmlElement & rCopy )

inline

◆ Print()

HRESULT GrayLib::cXmlElement::Print	(	cStreamOutput &	rOut,
		int	nDepth = `0`
	)		const

virtual

Print the Element to a cStreamOutput stream.

There are 3 different formatting approaches: 1) An element without children is printed as a "<foo />" pXNode 2) An element with only a text pChild is printed as "<foo> text </foo>" 3) An element with children is printed on multiple lines.

Implements GrayLib::cXmlNode.

◆ SetClear()

void GrayLib::cXmlElement::SetClear ( )

protectedvirtual

Delete all the children of this node. Does not affect 'this'.

Reimplemented from GrayLib::cXmlNode.

◆ SetCopy()

void GrayLib::cXmlElement::SetCopy ( const cXmlElement & n )

protectedvirtual

My set of attributes.

◆ SetParseNode()

HRESULT GrayLib::cXmlElement::SetParseNode ( cXmlReader & rReader )

virtual

Attribute parsing starts: next char past '<'

Returns: next char past '>'

Parse and populate XMLNODE_Element Attribute parsing starts: next char past '<'

Returns: next char past '>'

Implements GrayLib::cXmlNode.

◆ ToContainer()

virtual cXmlContainer* GrayLib::cXmlElement::ToContainer ( )

inlinevirtual

Reimplemented from GrayLib::cXmlNode.

◆ ToElement() [1/2]

virtual cXmlElement* GrayLib::cXmlElement::ToElement ( )

inlinevirtual

◆ ToElement() [2/2]

virtual const cXmlElement* GrayLib::cXmlElement::ToElement ( ) const

inlinevirtual

◆ ToNode()

virtual cXmlNode* GrayLib::cXmlElement::ToNode ( )

inlinevirtual

cast cXmlContainer is a cXmlDocument or cXmlElement

cast cXmlContainer as a cXmlElement

Implements GrayLib::cXmlContainer.

Member Data Documentation

◆ m_Attributes

cXmlAttributeSet GrayLib::cXmlElement::m_Attributes

The documentation for this class was generated from the following files:

c:/Dennis/Source/Gray/GrayLib/include/Xml/cXmlDocument.h
c:/Dennis/Source/Gray/GrayLib/src/Xml/cXmlDocument.cpp
