#include <cXmlDocument.h>

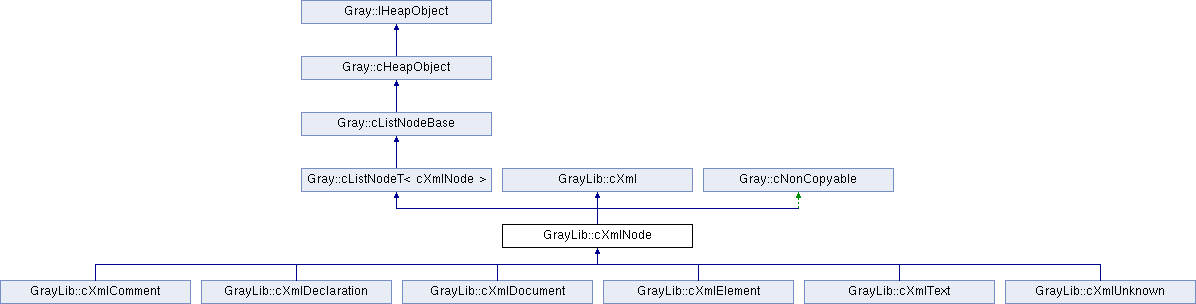

Inheritance diagram for GrayLib::cXmlNode:

Public Member Functions
virtual	~cXmlNode ()

XMLNODE_TYPE	get_Type () const

bool	isType (XMLNODE_TYPE eType) const

void	put_UserData (void *pUserData)

void *	get_UserData () const

virtual void	SetClear ()
	Delete all the children of this node. Does not affect 'this'. More...

void	put_Value (cXmlString sValue)

const cXmlString &	get_Value () const

HRESULT	QueryValueInt (int *piValue) const

HRESULT	QueryValueDouble (double *pdValue) const
	QueryValueDouble examines the value string. See QueryValueInt(). More...

int	get_ValueInt () const
	Return the value of this attribute, converted to an integer. More...

double	get_ValueDouble () const
	Return the value of this attribute, converted to a double. More...

void	put_ValueInt (int iValue)
	Set the value from an integer. More...

void	put_ValueDouble (double dValue)
	Set the value from a double. More...

cXmlDocument *	get_Document () const

cXmlNode *	GetPreviousSibling (const char *pszValue) const
	Navigate to a sibling node. More...

cXmlNode *	GetNextSiblingX (const char *pszValue) const
	Navigate to a sibling node with the given 'value'. More...

cXmlElement *	get_NextSiblingElement () const

cXmlElement *	GetNextSiblingElement (const char *pszValue) const

virtual cXmlContainer *	ToContainer ()

virtual cXmlNode *	Clone () const =0

virtual HRESULT	SetParseNode (cXmlReader &rReader)=0

HRESULT	SetParse (const char *pszData, CXML_ENCODING_TYPE eEncoding=CXML_ENCODING_UNKNOWN)

virtual HRESULT	Print (cStreamOutput &rOut, int nDepth=0) const =0

virtual bool	OnVisit (IXmlVisitor *pVisitor) const =0

ITERATE_t	get_Row () const

StrLen_t	get_Column () const

Public Member Functions inherited from Gray::cListNodeT< cXmlNode >
cXmlNode *	get_Next () const

cXmlNode *	get_Prev () const

Public Member Functions inherited from Gray::cListNodeBase
virtual	~cListNodeBase ()

cListBase *	get_Parent () const noexcept

cListNodeBase *	get_Next () const noexcept

cListNodeBase *	get_Prev () const noexcept

bool	hasParent () const noexcept

void	RemoveFromParent ()

virtual HRESULT	DisposeThis ()

Public Member Functions inherited from Gray::cHeapObject
	cHeapObject ()

virtual	~cHeapObject ()

bool	IsValidInsideN (INT_PTR index) const

bool	IsValidInsidePtr (void const *pTest) const

virtual size_t	GetHeapStatsThis (OUT ITERATE_t &iAllocCount) const

virtual bool	isValidCheck () const noexcept

Static Public Member Functions
static HRESULT	PrintDepth (cStreamOutput &rOut, int nDepth)

Static Public Member Functions inherited from GrayLib::cXml
static StrLen_t GRAYCALL	ParseMicrosoftBOM (const BYTE *pszData)

static bool GRAYCALL	IsXML (const IniChar_t *pszStr, StrLen_t iLenMax=StrT::k_LEN_MAX)

static cXmlString GRAYCALL	GetAttributeStr (const IniChar_t *pszName, const cXmlString &sValue)

static void	AddPathElement (cXmlString &sPath, const cXmlString &sElement)

static void	RemovePathElement (cXmlString &sPath, const cXmlString &sElement)

Public Attributes
cTextPos	m_Pos
	Where (line,col) in the parsed XML document is this node? m_PosNode. More...

Protected Member Functions
	cXmlNode (XMLNODE_TYPE eNodeType, cXmlString sValue="")
	Only instantiate as a derived type. More...

virtual void	SetCopy (const cXmlNode &n)

Protected Member Functions inherited from Gray::cListNodeBase
virtual void	put_Parent (cListBase *pParent)

	cListNodeBase () noexcept

Protected Member Functions inherited from Gray::cHeapObject
const void *	get_HeapPtr () const noexcept override
	Get the top level (outermost, freeable) class pointer. I can delete get_HeapPtr(). More...

Protected Member Functions inherited from Gray::cNonCopyable
	cNonCopyable () noexcept
	Force the use of Factory creation via protected constructor. More...

	~cNonCopyable () noexcept

Protected Attributes
const XMLNODE_TYPE	m_eNodeType

cXmlString	m_sValue
	parent usage dependent m_eNodeType. More...

void *	m_pUserData
	Field containing a generic pointer to arbitrary user data. More...

Additional Inherited Members
Public Types inherited from GrayLib::cXml
enum	XMLNODE_TYPE { XMLNODE_QTY }

Static Public Attributes inherited from GrayLib::cXml
static const char	k_xmlHeader [6] = "<?xml"
	"<?xml" // not case sensitive ! More...

static const char	k_xmlEnd [3] = "?>"
	"?>" More...

static const char	k_commentHeader [5] = "<!--"
	"<!--" // comments are not reentrant! More...

static const char	k_commentEnd [4] = "-->"
	"-->" More...

static const char	k_cdataHeader [10] = "<![CDATA["
	"<![CDATA[" More...

static const char	k_cdataEnd [4] = "]]>"
	"]]>" More...

static const char	k_dtdHeader [3] = "<!"
	"<!" More...

Detailed Description

Store a base node of data in the XML tree cXmlDocument. The parent/base class for everything in the cXmlDocument Object Model. (Except for attributes). Nodes have siblings, a parent, and children. A node can be in a document, or stand on its own. The type of a cXmlNode can be queried, and it can be cast to its more defined type. In XML, the document and elements can contain other elements and other types of nodes.

//!     A Document can contain: Element (container or leaf)
//!                                                     Comment (leaf)
//!                                                     Unknown (leaf)
//!                                                     Declaration( leaf )
//!
//!     An Element can contain: Element (container or leaf)
//!                                                     Text    (leaf)
//!                                                     Attributes (not on tree)
//!                                                     Comment (leaf)
//!                                                     Unknown (leaf)
//!
//!     A Declaration contains: Attributes (not on tree)
//!

Constructor & Destructor Documentation

◆ cXmlNode()

GrayLib::cXmlNode::cXmlNode	(	XMLNODE_TYPE	eNodeType,
		cXmlString	sValue = `""`
	)

protected

Only instantiate as a derived type.

◆ ~cXmlNode()

GrayLib::cXmlNode::~cXmlNode ( )

virtual

Member Function Documentation

◆ Clone()

virtual cXmlNode* GrayLib::cXmlNode::Clone ( ) const

pure virtual

Create an exact duplicate of this node and return it. The memory must be deleted by the caller.

Implemented in GrayLib::cXmlDocument, GrayLib::cXmlElement, GrayLib::cXmlUnknown, GrayLib::cXmlDeclaration, GrayLib::cXmlText, and GrayLib::cXmlComment.

◆ get_Column()

StrLen_t GrayLib::cXmlNode::get_Column ( ) const

inline

◆ get_Document()

cXmlDocument * GrayLib::cXmlNode::get_Document ( ) const

Return a pointer to the Document this node lives in. Returns nullptr if not in a document.

Walk up the tree to my top level parent document.

◆ get_NextSiblingElement()

cXmlElement * GrayLib::cXmlNode::get_NextSiblingElement ( ) const

Convenience function to get through elements. Calls NextSibling and ToElement. Will skip all non-Element nodes. Returns nullptr if there is not another element.

◆ get_Row()

ITERATE_t GrayLib::cXmlNode::get_Row ( ) const

inline

Return the position, in the original source file, of this node or attribute. The row and column are 1-based. (That is the first row and first column is 1,1). If the returns values are 0 or less, then the parser does not have a row and column value.

Generally, the row and column value will be set when the cXmlDocument::Load(), cXmlDocument::LoadFile(), or any cXmlNode::ParseNode() is called. It will NOT be set when the DOM was created from operator>>.

The values reflect the initial load. Once the DOM is modified programmatically (by adding or changing nodes and attributes) the new values will NOT update to reflect changes in the document.

There is a minor performance cost to computing the row and column. Computation can be disabled if cXmlDocument::SetTabSize() is called with 0 as the value.

See also: cXmlDocument::SetTabSize()

◆ get_Type()

XMLNODE_TYPE GrayLib::cXmlNode::get_Type ( ) const

inline

< Query the type (as an enumerated value, above) of this node.

◆ get_UserData()

void* GrayLib::cXmlNode::get_UserData ( ) const

inline

< Get a pointer to arbitrary user data.

◆ get_Value()

const cXmlString& GrayLib::cXmlNode::get_Value ( void ) const

inline

< Return the value of this attribute. string.

◆ get_ValueDouble()

double GrayLib::cXmlNode::get_ValueDouble ( ) const

Return the value of this attribute, converted to a double.

◆ get_ValueInt()

int GrayLib::cXmlNode::get_ValueInt ( ) const

Return the value of this attribute, converted to an integer.

◆ GetNextSiblingElement()

cXmlElement * GrayLib::cXmlNode::GetNextSiblingElement ( const char * pszValue ) const

Convenience function to get through elements. Calls NextSibling and ToElement. Will skip all non-Element nodes. Returns nullptr if there is not another element.

◆ GetNextSiblingX()

cXmlNode * GrayLib::cXmlNode::GetNextSiblingX ( const char * pszValue ) const

Navigate to a sibling node with the given 'value'.

Get the next element/node with this value.

Note: this name conflicts with something in WIN32 . no idea what.

◆ GetPreviousSibling()

cXmlNode * GrayLib::cXmlNode::GetPreviousSibling ( const char * pszValue ) const

Navigate to a sibling node.

Get the previous element/node with this value.

◆ isType()

bool GrayLib::cXmlNode::isType ( XMLNODE_TYPE eType ) const

inline

◆ OnVisit()

virtual bool GrayLib::cXmlNode::OnVisit ( IXmlVisitor * pVisitor ) const

pure virtual

OnVisit a hierarchical visit the nodes in the cXml DOM. Every node in the XML tree will be conditionally visited and the host will be called back via the IXmlVisitor interface.

This is essentially a SAX interface for cXml. (Note however it doesn't re-parse the XML for the callbacks, so the performance of cXml is unchanged by using this interface versus any other.)

The interface has been based on ideas from:

Which are both good references for "visiting". An example of using OnVisit():

//! cXmlWriter printer;
//! xmlDoc.OnVisit( &printer );
//! const char* xmlcstr = printer.CStr();
//!

Implemented in GrayLib::cXmlElement, GrayLib::cXmlDeclaration, GrayLib::cXmlComment, GrayLib::cXmlDocument, GrayLib::cXmlUnknown, and GrayLib::cXmlText.

◆ Print()

virtual HRESULT GrayLib::cXmlNode::Print	(	cStreamOutput &	rOut,
		int	nDepth = `0`
	)		const

pure virtual

All cXml classes can print themselves to a filestream or the string class (cXmlString in non-STL mode, std::string in STL mode.) Either or both pFile and string can be null.

This is a formatted print, and will insert tabs and newlines.

(For an unformatted stream, use the << operator.)

Implemented in GrayLib::cXmlDocument, GrayLib::cXmlElement, GrayLib::cXmlUnknown, GrayLib::cXmlDeclaration, GrayLib::cXmlText, and GrayLib::cXmlComment.

◆ PrintDepth()

HRESULT GrayLib::cXmlNode::PrintDepth	(	cStreamOutput &	rOut,
		int	nDepth
	)

static

Tab in the file to show depth.

◆ put_UserData()

void GrayLib::cXmlNode::put_UserData ( void * pUserData )

inline

< Set a pointer to arbitrary user data.

◆ put_Value()

void GrayLib::cXmlNode::put_Value ( cXmlString sValue )

inline

< Set the value.

◆ put_ValueDouble()

void GrayLib::cXmlNode::put_ValueDouble ( double dValue )

Set the value from a double.

like StrT::sprintfN( szBuffer, STRMAX(szBuffer), "%lf", dValue);

◆ put_ValueInt()

void GrayLib::cXmlNode::put_ValueInt ( int iValue )

Set the value from an integer.

◆ QueryValueDouble()

HRESULT GrayLib::cXmlNode::QueryValueDouble ( double * pdValue ) const

QueryValueDouble examines the value string. See QueryValueInt().

error as if using scanf("%lf")

◆ QueryValueInt()

HRESULT GrayLib::cXmlNode::QueryValueInt ( int * piValue ) const

QueryValueInt examines the value string. It is an alternative to the IntValue() method with richer error checking. If the value is an integer, it is stored in 'value' and the call returns S_OK. If it is not an integer, it returns HRESULT_WIN32_C(ERROR_DATATYPE_MISMATCH).

A specialized but useful call. Note that for success it returns 0, which is the opposite of almost all other cXml calls.

error as if using scanf("%d")

◆ SetClear()

void GrayLib::cXmlNode::SetClear ( )

virtual

Delete all the children of this node. Does not affect 'this'.

Reimplemented in GrayLib::cXmlDocument, GrayLib::cXmlElement, GrayLib::cXmlDeclaration, and GrayLib::cXmlText.

◆ SetCopy()

void GrayLib::cXmlNode::SetCopy ( const cXmlNode & n )

protectedvirtual

Copy to the allocated object. Shared functionality between Clone, Copy constructor, and the assignment operator.

◆ SetParse()

HRESULT GrayLib::cXmlNode::SetParse	(	const char *	pszData,
		CXML_ENCODING_TYPE	eEncoding = `CXML_ENCODING_UNKNOWN`
	)

Populate node. Just parse a block of text for this node type. Like JavaScript DOMParser.parseFromString()

◆ SetParseNode()

virtual HRESULT GrayLib::cXmlNode::SetParseNode ( cXmlReader & rReader )

pure virtual

Implemented in GrayLib::cXmlDocument, GrayLib::cXmlElement, GrayLib::cXmlUnknown, GrayLib::cXmlDeclaration, GrayLib::cXmlText, and GrayLib::cXmlComment.

◆ ToContainer()

virtual cXmlContainer* GrayLib::cXmlNode::ToContainer ( )

inlinevirtual

Is this Node a child container? Can it have children?

Reimplemented in GrayLib::cXmlDocument, and GrayLib::cXmlElement.

Member Data Documentation

◆ m_eNodeType

const XMLNODE_TYPE GrayLib::cXmlNode::m_eNodeType

protected

◆ m_Pos

cTextPos GrayLib::cXmlNode::m_Pos

Where (line,col) in the parsed XML document is this node? m_PosNode.

◆ m_pUserData

void* GrayLib::cXmlNode::m_pUserData

protected

Field containing a generic pointer to arbitrary user data.

◆ m_sValue

cXmlString GrayLib::cXmlNode::m_sValue

protected

parent usage dependent m_eNodeType.

The documentation for this class was generated from the following files:

c:/Dennis/Source/Gray/GrayLib/include/Xml/cXmlDocument.h
c:/Dennis/Source/Gray/GrayLib/src/Xml/cXmlDocument.cpp

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ cXmlNode()

◆ ~cXmlNode()

Member Function Documentation

◆ Clone()

◆ get_Column()

◆ get_Document()

◆ get_NextSiblingElement()

◆ get_Row()

◆ get_Type()

◆ get_UserData()

◆ get_Value()

◆ get_ValueDouble()

◆ get_ValueInt()

◆ GetNextSiblingElement()

◆ GetNextSiblingX()

◆ GetPreviousSibling()

◆ isType()

◆ OnVisit()

◆ Print()

◆ PrintDepth()

◆ put_UserData()

◆ put_Value()

◆ put_ValueDouble()

◆ put_ValueInt()

◆ QueryValueDouble()

◆ QueryValueInt()

◆ SetClear()

◆ SetCopy()

◆ SetParse()

◆ SetParseNode()

◆ ToContainer()

Member Data Documentation

◆ m_eNodeType

◆ m_Pos

◆ m_pUserData

◆ m_sValue
