#include <cXProtocol.h>

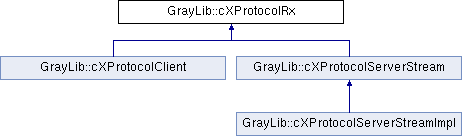

Inheritance diagram for GrayLib::cXProtocolRx:

Protected Member Functions
	cXProtocolRx (cXProtocolBase &rBase, cStreamInput *pStreamRx)

virtual	~cXProtocolRx ()

virtual HRESULT	onX_Error (HRESULT hResRet, const cVariant &vVal)=0

virtual HRESULT	onXSet_Prop (cXObject pObj, const cScriptableProp pProp, const cVariant &vVal)

virtual HRESULT	onXReq_Invoke (cXObject pObj, const cScriptableMethod pMethod, const cVariant &vArgs, OUT cVariant &vValRet)

virtual HRESULT	onXSet_PropN (UID_t uidLastRx, const ATOMCHAR_t *pszPropName, ATOMCODE_t nPropName, const cVariant &vVal)

virtual HRESULT	onXReq_InvokeN (UID_t uidLastRx, const ATOMCHAR_t *pszMethodName, ATOMCODE_t nMethodName, const cVariant &vArgs)

virtual HRESULT	onXSet_File (const FILECHAR_t *pszReqName, size_t dwTotalLen)

void	InitRx ()

HRESULT	ReadUID ()

HRESULT	on_Error ()

HRESULT	onSet_PropN ()

HRESULT	onReq_InvokeN ()

HRESULT	onSet_File ()

HRESULT	onSet_FileNext ()

cStreamInput &	get_StreamRx ()

virtual HRESULT	ProcessStreamRxMsg ()=0

virtual HRESULT	ProcessStreamPacket ()

Protected Attributes
cXProtocolBase &	m_rBase
	Input stream. More...

cStreamInput *	m_pStreamRx
	Where to RX from. More...

SCRIPTINTERFACEID_t	m_bInterfaceIDUnk
	An interface received that I don't understand (yet)! client only. More...

XPROTO_t	m_bMsgReading
	We are in the process of reading/dispatching a message. More...

XPROTO_t	m_bMsgReadPrev
	Last message i got and understood. for debug. More...

int	m_iMsgNumRx
	Count the messages we received. More...

UID_t	m_uidLastRx
	Last UID sent from client. ( be careful order of messages does not change!) More...

Detailed Description

General incoming stream of data from client or server

Constructor & Destructor Documentation

◆ cXProtocolRx()

GrayLib::cXProtocolRx::cXProtocolRx	(	cXProtocolBase &	rBase,
		cStreamInput *	pStreamRx
	)

protected

◆ ~cXProtocolRx()

GrayLib::cXProtocolRx::~cXProtocolRx ( )

protectedvirtual

Member Function Documentation

◆ get_StreamRx()

cStreamInput& GrayLib::cXProtocolRx::get_StreamRx ( )

inlineprotected

◆ InitRx()

void GrayLib::cXProtocolRx::InitRx ( )

protected

◆ on_Error()

HRESULT GrayLib::cXProtocolRx::on_Error ( )

protected

XPROTO_Error Always get this back as the first response to hello! Rx side of cXProtocolServerTx::Send_Error

◆ onReq_InvokeN()

HRESULT GrayLib::cXProtocolRx::onReq_InvokeN ( )

protected

XPROTO_InvokeN|XPROTO_Request Server or Client is calling some method (by name) on some object here. may just be an event from client to server. UserClick,etc

◆ onSet_File()

HRESULT GrayLib::cXProtocolRx::onSet_File ( )

protected

XPROTO_File i am getting a file. I probably requested it. is it OK to get this file ?

Note: This can be very large and span multiple XProtocol and/or TCP packets! Opposite of Send_FileChecked() ASSUME szSetFileName is a relative path to m_sFileRootDir. The client has no business knowing full paths on the other side.

Returns: S_FALSE = more to go. S_OK = done.

◆ onSet_FileNext()

HRESULT GrayLib::cXProtocolRx::onSet_FileNext ( )

protected

XPROTO_File|XPROTO_NextChunk Get/Receive the next part of the file.

Note: this can be overridden to do something to the file ?

Returns: S_FALSE = more to go. S_OK = done.

◆ onSet_PropN()

HRESULT GrayLib::cXProtocolRx::onSet_PropN ( )

protected

XPROTO_PropN I got a Prop from the connect.

◆ onX_Error()

virtual HRESULT GrayLib::cXProtocolRx::onX_Error	(	HRESULT	hResRet,
		const cVariant &	vVal
	)

protectedpure virtual

Implemented in GrayLib::cXProtocolServerStream, and GrayLib::cXProtocolClient.

◆ onXReq_Invoke()

HRESULT GrayLib::cXProtocolRx::onXReq_Invoke	(	cXObject *	pObj,
		const cScriptableMethod *	pMethod,
		const cVariant &	vArgs,
		OUT cVariant &	vValRet
	)

protectedvirtual

XPROTO_Invoke|XPROTO_Request Server or Client is calling some method on my pObj. override this virtual

Note: ASSUME cScriptContext is already set if needed (server only)

◆ onXReq_InvokeN()

HRESULT GrayLib::cXProtocolRx::onXReq_InvokeN	(	UID_t	uidLastRx,
		const ATOMCHAR_t *	pszMethodName,
		ATOMCODE_t	nMethodName,
		const cVariant &	vArgs
	)

protectedvirtual

XPROTO_InvokeN|XPROTO_Request Server or Client is calling some method on some object here. resolve this. nPropName or pszMethodName will be set.

◆ onXSet_File()

HRESULT GrayLib::cXProtocolRx::onXSet_File	(	const FILECHAR_t *	pszReqName,
		size_t	dwTotalLen
	)

protectedvirtual

XPROTO_File I am getting a file or part of a file. Override this at a higher level to decide if this is OK. Translate the req name to the local name / path.

pszSetFileName = the server side file i am getting. (and probably requested) ASSUME this is not a full path. The client has no business knowing the servvers full paths.
Returns
S_FALSE = more to go. S_OK = done.

◆ onXSet_Prop()

HRESULT GrayLib::cXProtocolRx::onXSet_Prop	(	cXObject *	pObj,
		const cScriptableProp *	pProp,
		const cVariant &	vVal
	)

protectedvirtual

XPROTO_Prop someone sent me a single prop. Do something with the data i got. override this virtual.

Note: ASSUME cScriptContext is already set if needed (server only)

◆ onXSet_PropN()

HRESULT GrayLib::cXProtocolRx::onXSet_PropN	(	UID_t	uidLastRx,
		const ATOMCHAR_t *	pszPropName,
		ATOMCODE_t	nPropName,
		const cVariant &	vVal
	)

protectedvirtual

XPROTO_PropN client is setting a prop on the server by name or hashcode. or server response to client request for a property

◆ ProcessStreamPacket()

HRESULT GrayLib::cXProtocolRx::ProcessStreamPacket ( )

protectedvirtual

Process get_StreamRx() for one single message.

Returns: <0 = error. HRESULT_WIN32_C(ERROR_IO_INCOMPLETE) = not complete message. S_OK = processed full message.

Reimplemented in GrayLib::cXProtocolServerStream.

◆ ProcessStreamRxMsg()

virtual HRESULT GrayLib::cXProtocolRx::ProcessStreamRxMsg ( )

protectedpure virtual

Implemented in GrayLib::cXProtocolServerStream, and GrayLib::cXProtocolClient.

◆ ReadUID()

HRESULT GrayLib::cXProtocolRx::ReadUID ( )

protected

Member Data Documentation

◆ m_bInterfaceIDUnk

SCRIPTINTERFACEID_t GrayLib::cXProtocolRx::m_bInterfaceIDUnk

protected

An interface received that I don't understand (yet)! client only.

◆ m_bMsgReading

XPROTO_t GrayLib::cXProtocolRx::m_bMsgReading

protected

We are in the process of reading/dispatching a message.

◆ m_bMsgReadPrev

XPROTO_t GrayLib::cXProtocolRx::m_bMsgReadPrev

protected

Last message i got and understood. for debug.

◆ m_iMsgNumRx

int GrayLib::cXProtocolRx::m_iMsgNumRx

protected

Count the messages we received.

◆ m_pStreamRx

cStreamInput* GrayLib::cXProtocolRx::m_pStreamRx

protected

Where to RX from.

◆ m_rBase

cXProtocolBase& GrayLib::cXProtocolRx::m_rBase

protected

Input stream.

My parent. dumb pointer.

◆ m_uidLastRx

UID_t GrayLib::cXProtocolRx::m_uidLastRx

protected

Last UID sent from client. ( be careful order of messages does not change!)

The documentation for this class was generated from the following files:

c:/Dennis/Source/Gray/GrayLib/include/XProtocol/cXProtocol.h
c:/Dennis/Source/Gray/GrayLib/src/XProtocol/cXProtocol.cpp
